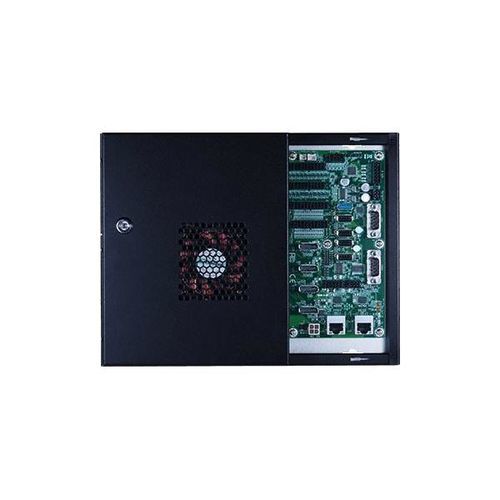

Box computer GM341-GHF

embeddedAMD Ryzen™ Embedded V1000AMD Ryzen™ Embedded R1000

Product Overview

• AMD® Ryzen™ Embedded V1000/R1000/R2000 processors
• High performance Radeon™ VEGA series graphics
• 4 DP++ 4K monitor support (V1000)
• Comprehensive gaming features
• 5 COM, 6 USB, 2 LAN and M.2 support
• 12V DC single input
• 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)

Key Features

• 4K2K Display
• 1G Ethernet
• DP++
• 12V DC-in
• DDR4

Certifications

• RoHS Certification
• CE Certification
• FCC Certification

Technical Specifications
System
Processor:
AMD® Ryzen™ Embedded V1807, Quad Core, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD® Ryzen™ Embedded V1756, Quad Core, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
AMD® Ryzen™ Embedded V1605, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen™ Embedded V1202, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W
AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz),15W
AMD® Ryzen™ Embedded R2312, 3C/4T, 2MB Cache, 3CU, 2.7GHz (3.5GHz), 12~25W
AMD® Ryzen™ Embedded R2314, 6C/12T, 4MB Cache, 6 CU, 2.1GHz (3.5GHz), 12~35W
AMD® Ryzen™ Embedded R2514, 6C/12T, 4MB Cache, 8 CU, 2.1GHz (3.7GHz), 12~35W
AMD® Ryzen™ Embedded R2544, 4C/8T, 4MB Cache, 8 CU, 3.35GHz (3.7GHz), 35~54W
Memory:
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 3200MHz
BIOS:
AMI BIOS (supports hash and public key validation)

Graphics
Controller: AMD® Radeon™ Vega Graphics
Feature: OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display: 4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz

Storage
2 x SATADOM with 7-pin VCC Support

Expansion
1 x M.2 M Key (2280, PCIe x2, only support for V1000)
Note: No SATA support

Audio
5.1 Channel Audio Output
S/PDIF Digital Output
Stereo 10W+10W Class D Audio AMP Output

Ethernet
2 x Realtek Ethernet LAN Controller (10/100/1000Mbps)

LED Indicators
1 x Power LED
1 x HDD LED

I/O
Ethernet: 2 x GbE (RJ-45)
Serial: 1 x RS-232, 1 x RS-232/422/485, 1 x RS-232 (Tx, Rx)/ccTalk, 2 x RS-232 (Tx, Rx)/SAS/BACTA
USB: 2 x USB 3.0, 4 x USB 2.0
Display: 4 x DP++ (V1000), 3 x DP++ (R1000)
Buttons: 1 x Power Button, 1 x Reset Button

Watchdog Timer
System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM 1.2/2.0

Gaming Features
8 x Intrusion Detections
Operates With and Without AC Power
Logs Date/Time of Last 64 Events
5 Years Data Retention during AC off
NVRAM: Supports up to 16Mbyte, Coin Battery Backup to Retain Data for 5 Years during AC off, Supports Battery Voltage Monitoring & Warning
DI/DO: 32-bit Digital Input, 32-bit OC output (29-bit x 500mA, support 8 meter with disconnect detection; 3-bit x 3A)
iButton: Support iButton 1-wire protocol

Power
Type: 12V
Connector: 4-pin Vertical Connector

OS Support
Windows 10 (64-bit), Linux

Environment
Operating Temperature: 0 to 45°C
Storage Temperature: -20 to 85°C
Relative Humidity: 5 to 90% RH (non-condensing)

Mechanism
Mounting: Wall Mount
Dimensions (W x H x D): 270mm x 63mm x 200mm
Weight: 2.6 kg

Standards and Certifications
Shock:
Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Non-Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration:
Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test, Random, 1Grms @ 5~500 Hz, 30min.
Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test, Sweep sine, 3Grms @ 10~500Hz, 30min.

Country of Origin
Taiwan

Ordering Information

• GM341-GHF-1807: AMD Ryzen Embedded V1807B, 4 DP++, 5 COM, 6 USB, 8MB NVRAM, 12V DC, half cover, CPU FAN
• GM341-GHF-1756: AMD Ryzen Embedded V1756B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
• GM341-GHF-1605: AMD Ryzen Embedded V1605B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
• GM341-GHF-1202: AMD Ryzen Embedded V1202B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN

Optional Items

• Power Adapter and Cable: 150W adapter; Input:100~240V; Output:12V/12.5A; Power Cable, DC 5.5*2.5 to 2*2P/4.2mm, L=200mm
• SATADOM: 64GB, MLC, Pin7 VCC; 32GB, MLC, Pin7 VCC
• M.2: 64GB M.2 P80 3ME2; 32GB M.2 P80 3ME2
• Memory: 4GB DDR4 2400 SO-DIMM; 8GB DDR4 2400 SO-DIMM; 16GB DDR4 2400 SO-DIMM
• Win 10 License: Win10 IoT Ent LTSB 2016 MultiLang OEI Value EPKEA; Win10 IoT Ent LTSB 2016 MultiLang OEI Entry EPKEA
• Gaming Testing Kit: GM900 Testing Board, 6 x Intrusion detection; 2x4p cable, 1 x Intrusion detection; 1x2p cable, 16 x DI; 2x10p cable, 16 x DI; 2x10p cable, 16 x DO; 2x9p cable, 16 x DO; 2x9p cable, USB type B to type A cable

Characteristics / Technical Specifications

• Processor: AMD® Ryzen™ Embedded V1000/R1000/R2000 Series
• Graphics: Radeon™ VEGA series
• Memory: Up to 32GB DDR4 3200MHz
• Storage: 2 x SATADOM, 1 x M.2 (V1000 only)
• Display: Up to 4 x DP++ 4K
• I/O: 5 COM, 6 USB, 2 LAN
• Audio: 5.1 Channel, S/PDIF, Class D AMP
• Power: 12V DC input
• Dimensions: 270mm x 63mm x 200mm
• Weight: 2.6 kg
• Operating Temp: 0 to 45°C
• Certifications: RoHS, CE, FCC
