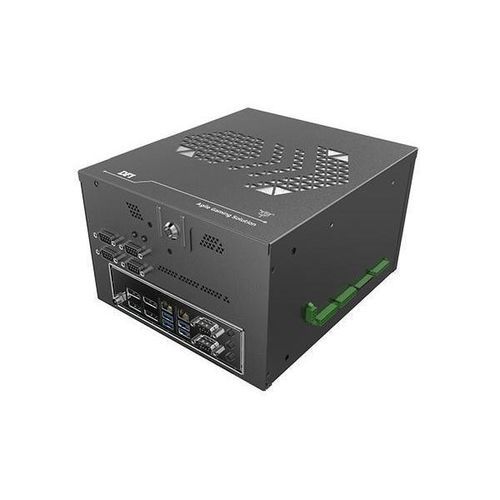

Box computer GM840-RNF

towerAMD Ryzen™ Embedded V2000RS-232

Product Overview

• AMD® Ryzen™ V2000 Series up to 4.25GHz
• Four independent displays: DP++ + DP++ + DP++ + DP++
• Reliable Data Security (Secure Boot, Secure Content, TPM 2.0)
• NVRAM up to 16MB and retain data at least 5 Years during AC off
• Rich I/O: 2 GbE, 6 COM (2 ccTalk), 2 USB 3.1, 6 USB 2.0, 1 Audio Tower (Mic-in/Line-in/Line-out)

Features

• DP (DisplayPort++)
• 12V DC-in
• Quad Independent Display
• Rich I/O Connectivity
• Powerful Processor
• High Security

Certifications

• CE Certification
• FCC Certification

Tags

• #Windows 10
• #M.2
• #M.2 A display
• #AMD
• #4K2K Display
• #1G Ethernet
• #Windows
• #Linux
• #DP
• #12V DC-in
• #DDR4
• #Gaming

Technical Specifications
System
Processor: AMD® Ryzen™ V2000 Series Processors, BGA V2748
AMD® Ryzen™ V2748, 8C/16T, 4MB Cache, 7 CU, 2.9GHz (4.25GHz), 45W
AMD® Ryzen™ V2546, 6C/12T, 3MB Cache, 6 CU, 3.0GHz (3.95GHz), 45W
AMD® Ryzen™ V2718, 8C/16T, 4MB Cache, 7 CU, 1.7GHz (4.15GHz), 15W
AMD® Ryzen™ V2516, 6C/12T, 3MB Cache, 6 CU, 2.1GHz (3.95GHz), 15W
Memory: Two 260-pin SODIMM up to 64GB, Dual channel DDR4 up to 3200MHz (ECC/ non ECC support)
BIOS: AMI BIOS

Graphics
Controller: AMD® RadeonTM VEGA7 Graphics
Feature: OpenGL 4.6, DirectX 12, OpenCL 2.1; HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9; HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display: 4 x DP++ (resolution up to 4096x2160 @ 60Hz)
Quad Displays: 4 x DP++

Storage
Interface: 2 x SATA 3.0, 1 x 2.5” SSD Bay

Expansion
Interface: 1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)

Audio
Audio Codec: Realtek ALC888S-VD2-GR

Ethernet
Controller: 2 x Realtek RTL8119-CG (10/100/1000Mbps)

LED
Indicators: 1 x Power LED, 1 x HDD LED

I/O
Ethernet: 2 x GbE (RJ-45)
Serial: 1 x RS-232/422/485 (DB-9), 1 x Full RS-232 (DB-9), 4 x RS-232 (TX,RX) (DB-9), 2 x RS-232 (TX,RX)/ccTalk (Microfit)
USB: 2 x USB 3.1 Gen1, 6 x USB 2.0
Display: 4 x DP++
Audio: 1 Audio Jack (Line-in/Line-out/Mic-in), S/PDIF Out (internal header)
Cooling: 1 x 8cm System Fan, with replaceable air filter

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: TPM 2.0

Gaming
Intrusion Detection: 8 x Intrusion detection, Operates With and Without AC Power, Logs Date/Time of latest 64 events, Coin Battery backup to Retain Data for 5 years during AC off
NVRAM: Supports up to 16Mbyte, Coin Battery backup to Retain Data for 5 years during AC off, Support Battery voltage monitoring & Warning
DI/DO: 32-bit Digital Input, 32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)
iButton: Support iButton 1-wire protocol

Power
Type: 12V DC IN
Connector: DC-in Jack or Right Angle Connector (4-pin)

OS Support
Microsoft: Windows IoT Enterprise 10 LTSB
Linux: Linux Ubuntu 20.04
Software: Supplied with gaming function SDK

Environment
Operating Temperature: 0~45°C
Storage Temperature: -20~85°C
Relative Humidity: 5%~90%

Mechanism
Mounting: Wall Mount
Dimensions (W x H x D): 220 x 125 x 200 mm
Weight: 2.9 kg

Standards and Certifications
Shock: Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); Non-Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration: Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test, Random,1Grms @ 5~500 Hz, 30min.; Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test, Sweep sine, 2Grms @ 10~500Hz, 30min.
Certifications: CE, FCC class A (ongoing)

Country of Origin
Taiwan

Key Characteristics / Technical Specifications

• AMD® Ryzen™ V2000 Series Processors
• Up to 64GB DDR4 SODIMM
• 4 x DP++ (4096x2160 @ 60Hz)
• 2 x SATA 3.0, 1 x 2.5” SSD Bay
• 1 x M.2 2280 M Key
• 2 x GbE, 8 COM, 2 USB 3.1 Gen1, 6 USB 2.0
• 1 Audio Jack, NVRAM, TPM 2.0
• 12V DC IN
• Operating Temp: 0~45°C
• Dimensions: 220 x 125 x 200 mm
• Weight: 2.9 kg
• CE, FCC class A (ongoing)
