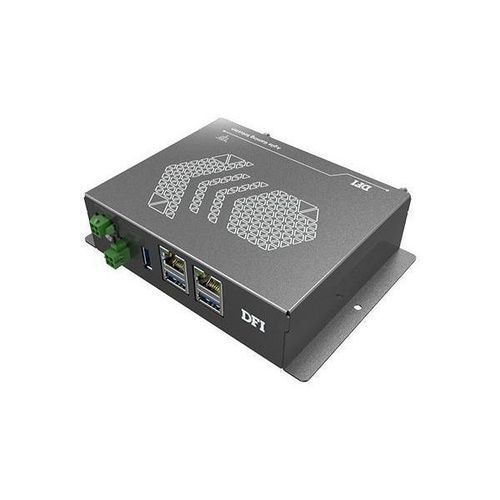

Box computer GM310-8MM

embeddedNXP i.MX8MRS-232

Product Overview

• NXP® i.MX 8M mini applications processors
• Reliable Data Security (RSA key, SHA256, TPM 2.0)
• NVRAM 256KB and retain data at least 1 Year during AC off
• Rich I/O: 2 GbE, 3 USB 2.0, 1 Line out, 1 uSD, 1 RS-232/422/485 (Provide the hardware circuit design for the SAS 9-bit interface), 1 RS232 with 8 data bits

Features

• 1G Ethernet
• Linux support
• Rich I/O Connectivity
• High Security
• Wide Voltage: 12~24V DC-in

Certifications

• CE Certification
• FCC Certification

Tags

• LVDS
• LPDDR4
• NXP
• NXP® i.MX 8M mini Series
• eMMC
• 12~24V DC-in
• Mini PCIe
• Fanless Design
• 1G Ethernet
• Linux
• CE Certification
• FCC Certification
• Gaming
• NXP i.MX 8M

Technical Specifications
System
Processor: NXP i.MX 8M mini applications processors, NXP i.MX 8M mini Quad Cortex-A53 1.8GHz (Commercial)
Memory: 1GB Memory Down (up to 4GB), Single Channel LPDDR4

Graphics
Controller: 2D-GC320, 3D-GC NanoULTRA
Feature: OpenGL® ES 2.1, VPU Decode: 1080p60 HEVC, H.264, VP9, VP8, VPU Encode: 1080p60 H.264, VP8
Display: 1 x LVDS (HDMI by request), Resolution supports up to 1920 x 1080 @60Hz

Storage
Interface: Support eMMC 5.1 8GB on board

Expansion
Interface: 1 x Mini-PCIe Support Full/Half Size Wifi + BT / LTE

Audio
Audio Codec: Cirrus Logic WM8524

Ethernet
Controller: 1 x LAN7500(10/100/1000Mbps), 1 x AR8031(10/100/1000Mbps)

LED
Indicators: 1 x Status LED

I/O
Ethernet: 2 x GbE (RJ-45)
Serial: 1 x RS-232/422/485 (Provide the hardware circuit design for the SAS 9-bit interface), 1 x RS232 with 8 data bits
USB: 2 x USB 2.0, 1 x USB 2.0 (Right Angle)
Display: 1 x LVDS (HDMI by request)
Audio: 1 x Header (Line-out)
Cooling: Fanless

Security
TPM: TPM 2.0

Gaming
NVRAM: 256KB, Coin Battery backup to Retain Data for 2 years during AC off

Power
Type: 12~24V DC IN
Connector: 4-pin Micro-Fit header

OS Support
Linux: Linux Yocto 2.5 (Kernel 4.14.98)

Environment
Operating Temperature: -5~60°C
Storage Temperature: -20~85°C
Relative Humidity: 5%~90%

Mechanism
Mounting: Wall Mount
Dimensions (W x H x D): 143mm x 100 mm x 35 mm
Weight: 0.45 kg

Standards and Certifications
Shock: Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); Non-Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration: Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test, Random,1Grms @ 5~500 Hz, 30min.; Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test, Sweep sine, 2Grms @ 10~500Hz, 30min.
Certifications: CE, FCC class A (ongoing)

Country of Origin: Taiwan

Characteristics / Technical Specifications

• Processor: NXP i.MX 8M mini Quad Cortex-A53 1.8GHz
• Memory: 1GB LPDDR4 (up to 4GB)
• Storage: 8GB eMMC 5.1 onboard
• Expansion: 1 x Mini-PCIe (Full/Half Size, Wifi + BT / LTE)
• Ethernet: 2 x GbE (RJ-45), LAN7500, AR8031
• USB: 3 x USB 2.0
• Serial: 1 x RS-232/422/485, 1 x RS232 (8 data bits)
• Display: 1 x LVDS (HDMI by request), up to 1920 x 1080 @60Hz
• Audio: Cirrus Logic WM8524, 1 x Header (Line-out)
• Cooling: Fanless
• TPM: 2.0
• NVRAM: 256KB, Coin Battery backup (2 years retention)
• Power: 12~24V DC IN, 4-pin Micro-Fit header
• OS: Linux Yocto 2.5 (Kernel 4.14.98)
• Operating Temp: -5~60°C
• Storage Temp: -20~85°C
• Humidity: 5%~90%
• Mounting: Wall Mount
• Dimensions: 143mm x 100mm x 35mm
• Weight: 0.45 kg
• Certifications: CE, FCC class A (ongoing)
• Country of Origin: Taiwan
