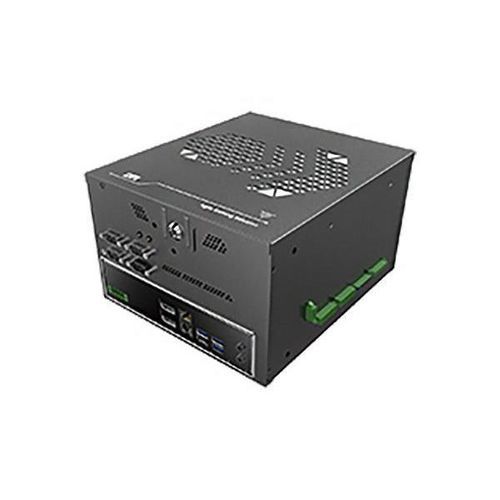

Box computer GM850-ARF

embeddedIntel® Alder Lake-SRS-232

Product Overview

• Intel Arrow Lake S processor, TDP up to 65W, 2 DDR5 5600/6400MHz SODIMM up to 96GB
• Quad Display: 1 HDMI + 1 DP++ + 1 USB Type C (DP Alt-mode) + 1 eDP (MXM) + 1 internal DFI M2A-Display
• Support 1 PCIe Gen 5 x16
• Reliable Data Security (Secure Boot, Secure Content, TPM 2.0)
• Rich I/O: Support up to 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2 Type A, 1 USB Type C (DP alt/USB3 Gen2x2 /PD 15W), Audio L/R 3W speaker
• NVRAM up to 16MB and retain data at least 5 Years during AC off
• Support EXT-OOB (Full), optional internal RJ45, CNVi, vPro
• Typically supports 5-Year CPU Life Cycle Until Q1’29 (Based on Intel Roadmap)

Features

• PCIe x16
• Quad Independent Display
• DDR5
• Rich I/O
• Powerful Processor
• AI
• High Security

Certifications

• CE Certification
• FCC Certification

Related Tags

• #DDR5
• #Windows 10
• #eDP
• #USB Type-C DP
• #12-28V DC-in
• #Intel Arrow Lake S processor
• #MXM
• #AI
• #Windows 11
• #Intel
• #4K2K Display
• #PCIe x16
• #Windows
• #Linux
• #DP
• #Multiple Expansion
• #12V DC-in
• #CE Certification
• #FCC Certification
• #High-Performance
• #Gaming
• #2.5G Ethernet

Technical Specifications
System
Processor
Intel® Core™ Ultra LGA 1851 Socket Processors, support up to TDP 65W.
Intel® Core™ U9-285T (24 Cores, 36M Cache, up to 1.4 GHz); 35W
Intel® Core™ U9-285 (24 Cores, 36M Cache, up to 2.5 GHz); 65W
Intel® Core™ U7-265T (20 Cores, 30M Cache, up to 1.5 GHz); 35W
Intel® Core™ U7-265F (20 Cores, 30M Cache, up to 2.4 GHz); 65W
Intel® Core™ U7-265 (20 Cores, 30M Cache, up to 2.4 GHz); 65W
Intel® Core™ U5-225F (10 Cores, 20M Cache, up to 3.3 GHz); 65W
Intel® Core™ U5-225 (10 Cores, 20M Cache, up to 3.3 GHz); 65W
Chipset
Intel® W880/Q870/H810
Memory
2x 260-pin SODIMM up to 96GB
Dual Channel DDR5 5600MHz/6400MHz, W880 support ECC
BIOS
AMI SPI 256 Mbit
Graphics
Controller: Intel® Graphics
Feature: DirectX 12, HW Decode: H.264, H.265, VP9, AV1; HW Encode: H.264, H.265, HEVC, AV1
Display: 1 x HDMI Resolution up to 4096 x 2160 @ 30Hz; 1 x DP++ Resolution up to 4096x2304@60Hz; 1 x USB Type C: DP 1.2 alt-mode Resolution up to 4096x2304@60Hz; 1 x eDP resolution supports up to 4096x2304 @60Hz; 1 x Internal DFI M2A-Display (DDI)
Quad Displays: 1 HDMI + 1 DP++ + 1 USB Type C(DP Alt-mode) + 1 eDP(MXM) + 1 internal DFI M2A-Display
Storage
Interface: 1 x M.2 B Key slot (Support PCIe Gen3 x1, SATA, USB 3.2, USB 2.0 signal)
Expansion
Interface: 1 x PCIe x16 slot w/ locker, PCIe Gen5 supported; 1 x M.2 2230 Key-E (PCIe Gen4x1, USB2.0, CNVi module); 1 x M.2 2280Key-M; 1 x M.2 2242/3042/3052 Key-B (PCIe Gen3 x1, SATA, USB 3.2, USB 2.0); 1 x M.2 A key
Audio
Audio Codec: Codec IC: Realtek ALC888; Amp IC: Realtek ALC105
Ethernet
Controller: 2 x i226-V (10/100/1000/2500 MHz)
LED
Indicators: 1 x Power LED; 1 x HDD LED
I/O
Ethernet: 2 x 2.5GHz RJ45
Serial: 2 x RS-232/422/485 (DB-9)
USB: 6 USB 3.2 Gen2 or 5 USB 3.2 Gen2 + 1 USB 3.2 Gen2x2 Type C
Display: 1 HDMI + 1 DP++ + 1 USB Type C(DP Alt-mode) + 1 eDP(MXM) + 1 internal DFI M2A-Display
Audio: 1 Audio Jack (Line-out/Mic-in) L/R 3W speaker
Cooling: 1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM: TPM 2.0
Gaming
Intrusion Detection: 8 x Intrusion detection; Operates With and Without AC Power; Logs Date/Time of latest 64 events; Coin Battery backup to Retain Data for 5 years during AC off
NVRAM: Supports up to 16Mbyte; Coin Battery backup to Retain Data for 5 years during AC off; Support Battery voltage monitoring & Warning
DI/DO: 32-bit Digital Input; 32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)
iButton: Support iButton 1-wire protocol
Power
Type: ARS101 12V DC IN, ARS103 12V~28V DC IN
Connector: DC-Jack & 2x2p ATX power vertical/right conn
OS Support
Microsoft: Windows 10 IoT Enterprise LTSC(64-bit), Windows 11 IoT Enterprise LTSC(64-bit)
Linux: Linux Ubuntu 24.04
Software: Supplied with gaming function SDK
Environment
Operating Temperature: 0~45°C
Storage Temperature: -20~85°C
Relative Humidity: 5%~90%
Mechanism
Mounting: Wall Mount
Dimensions (W x H x D): TBD
Weight: TBD
Standards and Certifications
Shock: Operation: IEC 60068-2-27 Test Ea: Shock test; Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); Non-Operation: IEC 60068-2-27 Test Ea: Shock test; Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration: Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test Random,1Grms @ 5~500 Hz, 30min.; Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test Sweep sine, 2Grms @ 10~500Hz, 30min.
Certifications: CE, FCC class A (ongoing)
Country of Origin: Taiwan

Optional Items

• MXM Quadro T1000: 50W, 896 CUDA Cores, 2.6 TFLOPS, 0~55°C
• MXM Quadro RTX A500: 35W, 2048 CUDA Cores, 6.54 TFLOPS, 0~55°C
• MXM Quadro RTX A1000: 60W, 2048 CUDA Cores, 6.66 TFLOPS, 0~55°C
• MXM Quadro RTX A2000: 60W, 2560 CUDA Cores, 8.64 TFLOPS, 0~55°C
• MXM Quadro RTX3000: 80W, 1920 CUDA Cores, 5.3 TFLOPS, 0~55°C
• MXM Quadro RTX A4500: 115W, 5888 CUDA Cores, 17.66 TFLOPS, 0~55°C
• MXM Cooler: MXM cooler for RTX3000 87x106.35x34mm; MXM cooler for T1000 73x60x32.1mm

Key Technical Characteristics

• Intel Arrow Lake S processor, up to 65W TDP
• 2 DDR5 SODIMM up to 96GB
• Quad Display support
• PCIe Gen 5 x16 slot
• TPM 2.0 security
• Rich I/O: 2x 2.5GbE, 2x COM, 6x USB 3.2 Gen2, 1x USB Type C, Audio Jack
• NVRAM up to 16MB, 5-year retention
• Operating Temp: 0~45°C
• CE, FCC certifications
