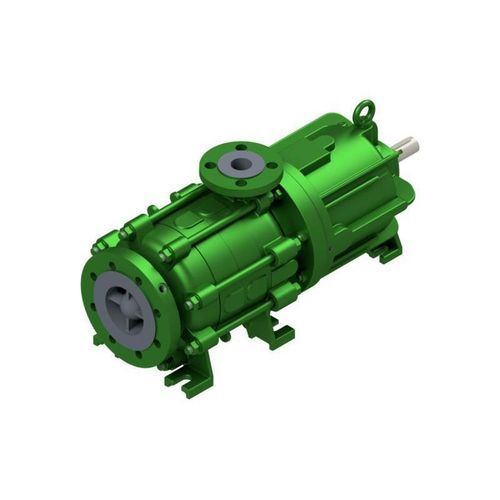

Centrifugal pump HZMA

fuelfor hydrocarbonsfor chemicals

Product description
Type HZMA is a single- or multi-stage centrifugal pump with permanent magnetic coupling and an axial suction port. The magnetic coupling and containment shell hermetically isolate the pumped fluid from the external environment. An internal circulation flow dissipates heat generated by eddy-current losses. The pump shaft is supported by SiC plain bearings on the product side; the drive shaft runs in permanently grease-lubricated ball bearings. Wear rings are standard on both suction and discharge sides. Axial thrust is compensated by a double-sided relief disc with chambers acted upon by both the pump discharge and the first-stage pressure. The pump is designed for horizontal installation.

Applications

• Oil & gas
• Chemical processing
• Petrochemical plants
• Offshore installations
• Shipbuilding / marine
• Refueling systems & aviation
• Tank storage / tank farms
• Renewable energy & environmental engineering

Characteristics / Specifications

• Q max: 600 m³/h (depends on size and speed)
• H max: 500 m (depends on size and speed)
• Operating pressure: 16 bar (higher pressures on request)
• Temperature range: up to 200° C (higher temperatures on request)
• Max rotational speed: 3500 min−1
• Seal: magnetic coupling (containment shell)
• Installation: horizontal
• Self-priming: no
• Bearing arrangement: SiC plain bearings on product side; drive shaft in permanently grease-lubricated ball bearings
• Lubrication: grease
• Materials: duplex, Ni-based alloys, spheroidal graphite iron / cast steel, austenitic steels
• Standards: ISO 15783
• Explosion protection: Category 2 / Zone 1

Notes

• * Higher pressures and temperatures available on request.
• ** Performance (flow / head) depends on pump size and rotational speed.

Design features

• Pump type: single- or multi-stage centrifugal pump with permanent magnet coupling
• Suction: axial; orientation: horizontal installation
• Axial thrust compensation: double-sided relief disc
• Standard wear rings on suction and discharge
• Materials and internals selectable to suit corrosive or abrasive fluids
