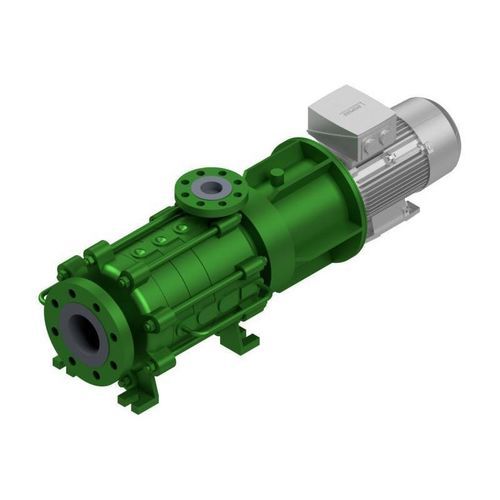

Centrifugal pump HZMAB

for hydrocarbonsfor gasoil

Description The HZMAB is a single- or multistage cantilever centrifugal pump with magnetic coupling and axial suction nozzle. The pump features a permanent magnetic coupling; the containment shell hermetically seals the pumped fluid. An internal circulation flow removes heat generated by eddy-current losses. The pump shaft is supported on SiC plain bearings. Wear rings are fitted on suction and discharge sides. Axial thrust is balanced by a double-sided relief disc whose relief chambers are loaded by both the pump discharge and the pressure of the first stage. Direct motor mounting eliminates additional rolling bearings and a mechanical coupling.

Applications

• Oil & Gas
• Chemical
• Petrochemical
• Offshore
• Shipbuilding / Marine
• Refueling & Aviation
• Tank farms / storage terminals
• Renewable energy / environmental engineering

Technical data

• Q max: 600 m³/h [2640 g.p.m.]**
• H max: 500 m [1640 ft]**
• Operating pressure: 16 bar [232 psi]*
• Temperature: 200° C [392° F]*
• Max. speed: 3500 min−1
• Sealing: Magnetic coupling
• Installation: horizontal
• Suction nozzle: axial
• Self-priming: yes
• Bearings: plain bearings (SiC)
• Materials: duplex, Ni-base, spheroidal cast iron / grey cast iron, austenitic cast steel
• Standards: ISO 15783
• Ex protection: Category 2 / Zone 1

Characteristics / Specifications

• Permanent magnetic coupling with hermetic containment shell
• Internal circulation flow to evacuate heat from eddy-current losses
• SiC plain bearings for the pump shaft
• Wear rings on suction and discharge sides
• Axial thrust balance via double-sided relief disc (pressurized by pump discharge and first-stage pressure)
• Direct motor mounting; no additional rolling bearings or mechanical coupling required
• Material options for various fluids and applications: duplex, nickel-base alloys, spheroidal/grey cast iron, austenitic cast steel
• Suitable for applications with explosion-protection requirements (Category 2 / Zone 1)
• * higher pressures and temperatures available on request
• ** dependent on size and speed
