Side-channel pump HZMAR

for hydrocarbonsfor gasoil

Product description

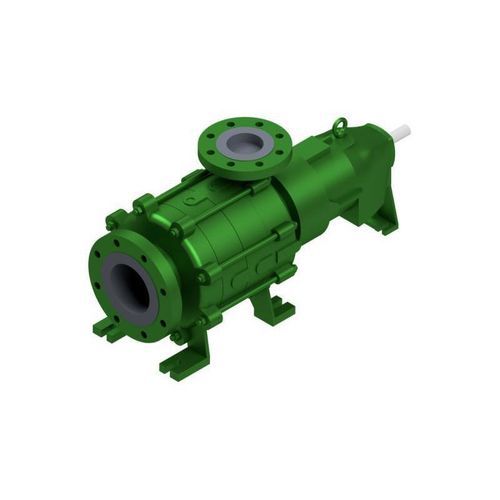

The HZSMAR is a single- or multi-stage sectional pump equipped with a magnetic coupling and a side-channel (vessel) gas-handling stage. The gas-handling device operates on the side-channel pump principle: during gas entrainment the pressure increase in the side-channel stage enables reintroduction of gas into the liquid phase. The pump features a permanent magnetic coupling; the gap chamber provides a hermetic seal between the pumped medium and the environment. Heat generated by eddy-current losses is removed by an internal circulation flow. The pump shaft is supported by SiC sliding bearings on the product side and oil-lubricated rolling bearings on the drive side. Suction and discharge wear rings are standard. Axial thrust is balanced by a double-sided relief disc whose relief chambers are loaded by both the pump discharge and the pressure of the first stage.

Applications

• Oil & Gas
• Chemicals
• Petrochemicals
• Offshore
• Shipbuilding / Marine
• Refuelling systems & Aviation
• Tank farms / Tank terminals
• Renewable energy / Environmental engineering

Technical data

• Q max: 600 m³/h [2640 g.p.m.]
• H max: 500 m [1640 ft]
• Operating pressure: 16 bar [232 psi]
• Temperature: 100° C [212° F]
• Max. speed: 3500 min−1
• Sealing: magnetic coupling
• Installation: horizontal
• Suction nozzle: axial
• Bearings: rolling bearings (drive), sliding bearings SiC (product side)
• Lubrication: oil
• Materials: Duplex, Ni-base, spheroidal cast iron / cast steel, austenitic cast steel
• Standards: API 685, ISO 15783
• Ex protection: Category 2 / Zone 1

Characteristics / Specifications

• Single- or multi-stage sectional pump with magnetic coupling
• Side-channel stage for gas handling and reintroduction into the liquid phase
• Permanent magnetic coupling with hermetic gap-chamber sealing
• Heat dissipation via internal circulation flow
• SiC sliding bearings on product side and oil-lubricated rolling bearings on drive side
• Suction and discharge wear rings as standard
• Axial thrust balance using a double-sided relief disc
• Designed for demanding applications in Oil & Gas, Chemicals, Petrochemicals, Offshore and Marine
