Impeller pump HZAR

for hydrocarbonsoilfor chemicals

Overview

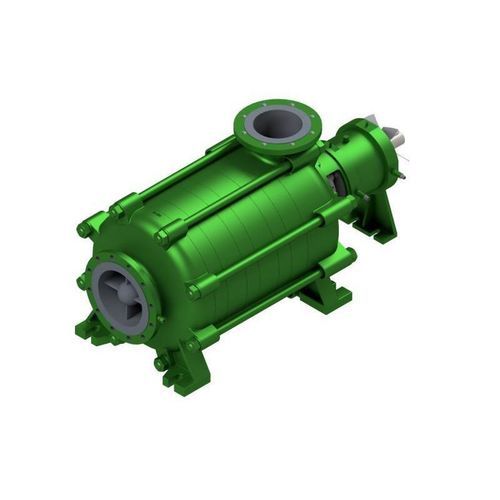

The HZAR is a single- or multistage segmented centrifugal pump manufactured to API 610, BB4 design, featuring an axial suction nozzle. The suction assembly is designed with an axial inlet and the suction-side impeller has an enlarged inlet area to achieve very low NPSH values. Axial thrust is balanced by relief holes and throttle gaps; wear and throttle rings are standard on both suction and discharge. Shaft bearings consist of a cylindrical roller bearing and a pair of angular contact ball bearings. Replaceable bearing seals are fitted on both sides. Atmospheric sealing is provided by profile rings in a metal-to-metal design. The seal chamber is arranged to accept mechanical seals in accordance with API 682.

Applications

• Oil & Gas
• Chemicals
• Petrochemicals
• Offshore
• Shipbuilding / Marine
• Refuelling & Aviation
• Tank farms / Storage terminals
• Renewable energy / Environmental engineering

Documentation
Brochure (German) and brochure (English) are available for this product.

Technical characteristics / specifications

• Q max: 600 m³/h [2640 gpm]**
• H max: 500 m [1640 ft]**
• Operating pressure: 16 bar [232 psi]*
• Temperature: 200 °C [392 °F]*
• Max. speed: 3500 min−1
• Sealing: mechanical seal
• Installation: horizontal
• Suction nozzle: axial
• Self-priming: yes
• Bearings: cylindrical roller bearing and pair of angular contact ball bearings (rolling bearings), plain bearings
• Lubrication: oil
• Materials: Duplex, Ni-based alloys, austenitic cast steel
• Standards: API 610
• Ex protection: Category 2 / Zone 1
• Note: * higher pressures and temperatures on request
• Note: ** depending on size and speed
