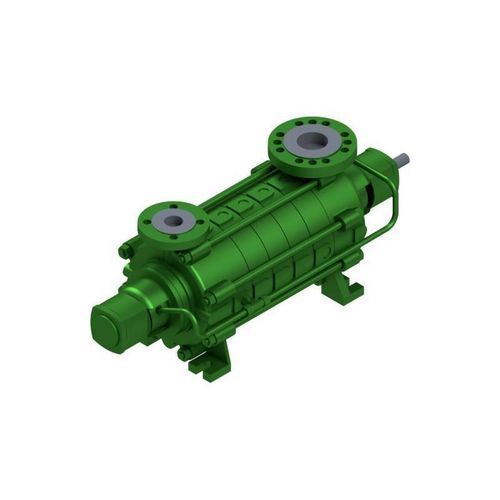

Impeller pump HZ

for crude oilfueloil

Description
Type HZ is a single- or multi-stage centrifugal pump with shaft sealing. The suction stand is designed as an inlet spiral and the suction-side impeller features an enlarged inlet cross section to achieve low NPSH values. Axial thrust is compensated via relief boreholes and throttle gaps. Wear rings on suction and pressure sides are standard. The pump shaft is supported by a cylindrical ball bearing and a double-sided angular contact ball bearing. Pumps can be operated in both clockwise and counterclockwise directions. A lateral suction-nozzle arrangement is available as a variant.

Applications

• oil & gas
• chemistry
• petrochemistry
• offshore
• ship technology / marine
• refueling equipment & aviation
• tank storages / tank farms
• renewable energy / environmental engineering

Documentation
Brochures available in German and English.

Technical specifications

• Q max: 600 m³/h (depending on size and speed)
• H max: 500 m (depending on size and speed)
• Operating pressure: 16 bar (higher pressures on request)
• Temperature: up to 200 °C (higher temperatures on request)
• Max rotational speed: 3500 min−1
• Seal: mechanical seal
• Installation: horizontal
• Self-priming: no
• Bearings: cylindrical roller / angular contact ball / product-side plain bearing options
• Lubrication: grease
• Materials: duplex, Ni-based alloys, spheroidal graphite iron / cast steel, austenitic stainless steel
• Standards: ISO 5199
• Explosion protection: category 2 / zone 1
