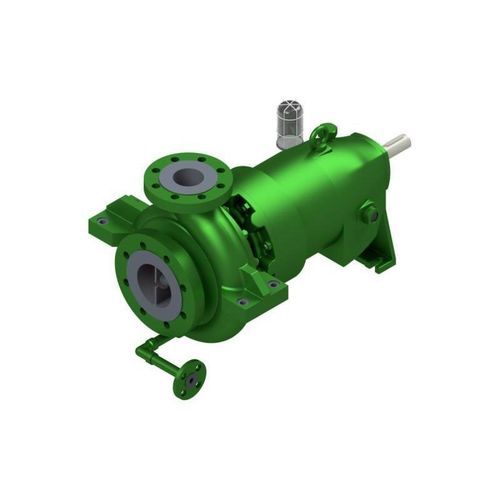

Centrifugal with volute pump PRM

for hydrocarbonsoilfor chemicals

Product description
The PRM is a volute-casing process pump with magnetic drive according to API 685. The pump is equipped with a permanent magnet coupling; the containment shell provides a hermetic seal of the conveyed fluid. An internal circulation flow removes heat generated by eddy-current losses. The volute casing features integral supports for mid-shaft suspension and a welded, flanged drain. Axial thrust is balanced by relief holes, back vanes or other measures. Wear rings are standard on suction and discharge sides. The pump shaft is supported by SiC sleeve bearings on the product side; the drive shaft runs on oil-lubricated rolling bearings.

Applications

• Oil & Gas
• Chemical
• Petrochemical
• Offshore
• Shipbuilding / Marine
• Refuelling & Aviation
• Tank storage / Tank farms
• Renewable energy / Environmental technology

Technical data

• Q max: 1400 m³/h (depending on size and speed)
• H max: 250 m (depending on size and speed)
• Operating pressure: 40 bar (higher pressures on request)
• Temperature: 300 °C (higher temperatures on request)
• Max. speed: 3500 min−1
• Sealing: magnetic coupling
• Orientation: horizontal
• Self-priming: yes
• Bearings: rolling bearings; product side SiC sleeve bearings
• Lubrication: oil
• Materials: duplex, Ni-based alloys, austenitic cast steel
• Standards: API 685
• Ex protection: Category 2 / Zone 1

Model / Technical specifications

• Model: PRM
• Flow (Q max): 1400 m³/h
• Head (H max): 250 m
• Operating pressure: 40 bar
• Max. temperature: 300 °C
• Max. speed: 3500 min−1
• Sealing: permanent magnetic coupling (hermetic containment by containment shell)
• Bearings: SiC sleeve bearings (pump side), oil-lubricated rolling bearings (drive)
• Orientation: horizontal
• Materials: duplex, nickel-base alloys, austenitic cast steel
• Standard: API 685
• Ex protection: Category 2 / Zone 1
