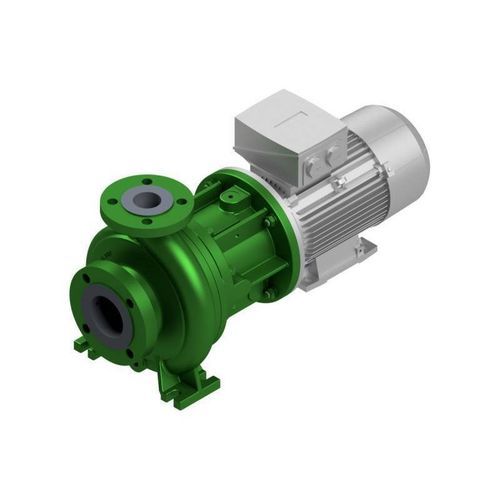

Centrifugal with volute pump KMB

fueloilfor chemicals

Product overview
Type KMB is a single-stage volute casing pump designed to ISO 2858 housing dimensions. The pump is equipped with a permanent magnetic coupling; the containment shell hermetically seals the pumped fluid from the outside. The pump shaft is supported by a SiC plain bearing. Direct motor mounting removes the need for additional bearings and a mechanical coupling.

Applications

• oil & gas
• chemical industry
• petrochemistry
• offshore
• shipbuilding / marine
• refueling systems & aviation
• industrial heating systems / heat transfer
• tank storage / tank farms
• renewable energy / environmental engineering

Technical data

• Q max: 100 m³/h [440 g.p.m.]**
• H max: 80 m [262 ft]**
• operating pressure: 16 / 24 / 40 bar [232 / 348 / 580 psi]*
• temperature: up to 180° C [356° F]*
• max rotational speed: 3500 min−1
• gasket / mechanical seal: magnetic coupling (containment shell)
• installation: horizontal
• self-priming: no
• bearing: SiC plain bearing
• lubrication: grease
• materials: duplex, Ni-based alloys, spheroidal graphite iron, cast steel, austenitic steel
• standards: ISO 15783
• explosion protection: category 2 / zone 1

Notes
* higher pressures and temperatures on request
** depending on size and speed

Characteristics / Technical specifications

• Model: KMB
• Type: single-stage volute casing pump according to ISO 2858 with magnetic coupling
• Flow (Q max): 100 m³/h
• Head (H max): 80 m
• Operating pressure options: 16 / 24 / 40 bar
• Rated temperature: up to 180° C
• Max speed: 3500 min−1
• Seal type: magnetic coupling (containment shell)
• Bearing: SiC plain bearing
• Installation orientation: horizontal
• Self-priming: no
• Lubrication: grease
• Materials available: duplex, Ni-based alloys, spheroidal graphite iron, cast steel, austenitic steel
• Standards: ISO 15783
• Explosion protection: category 2 / zone 1
