Centrifugal pump NMX

oildiathermic oilmagnetic-drive

Overview
The NMX series are next-generation heat transfer pumps engineered for modern thermal oils of all types. The magnetic-drive centrifugal design reliably extends performance beyond common operating limits. The pump is self-degassing and does not require external cooling, providing a true plug-and-play solution that reduces risk of incorrect operation.

Design & safety features
The hermetically sealed containment shell is installed in a separate housing and additionally sealed to atmosphere with a graphite safety packing. In the unlikely event of a containment shell rupture, escaped pumped medium is minimised to protect personnel and the environment. The integrated fan flow deflector (ffd) prevents unwanted temperature buildup at the antifriction bearing.

Type

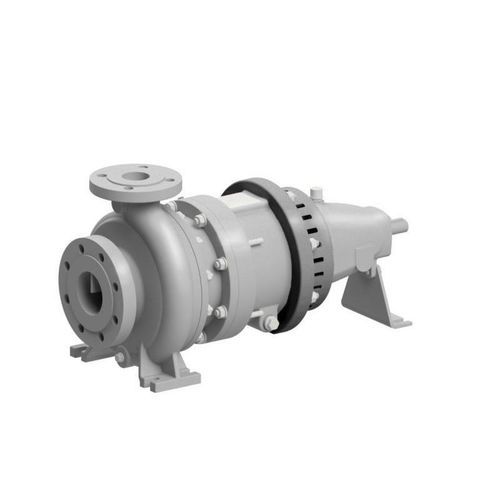

Type NMX — single-stage volute casing pump with magnetic coupling for thermal oil applications

Key performance data
Q max: 1400 m³/h [6160 g.p.m.]**
H max: 250 m [820 ft]**
Operating pressure: 24 bar [348 psi]*
Temperature: 450° C [840° F]*

Applications

• Oil & gas
• Chemical industry
• Petrochemical industry
• Offshore installations
• Industrial heating systems / heat transfer circuits
• Renewable energy / environmental engineering

Technical specifications

• Max rotational speed: 3500 rpm
• Seal: magnetic coupling (hermetically sealed)
• Installation: horizontal
• Self-priming: no
• Bearing: plain bearing
• Lubrication: oil
• Materials: spheroidal graphite iron / cast steel, austenitic steel
• Standards: DIN EN ISO 2858, ISO 15783
• Explosion protection: category 2 / zone 1
• Self-degassing design — does not require external cooling
• Hermetically sealed containment shell in separate housing with graphite safety packing to minimize leakage in case of rupture
• Integrated fan flow deflector (ffd) to prevent temperature buildup on antifriction bearing
• Remarks: * higher pressures and temperatures on request; ** depending on size and speed
