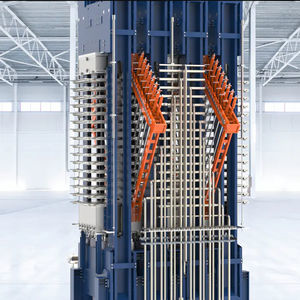

Motorized press CPS+

compressionheat transferframe

Continuous production of PB, OSB, MDF and LVL under simultaneous influence of accurate pressure and temperature. Application PB, MDF, OSB and LVL board production Customer benefits Low sanding allowance due to the double-hinge infeed system Low glue consumption due to Parallel Press Gap System Offset-placed cylinders homogenize board’s surface Optimal thickness tolerances due to proven CPS+ Thickness Control System Thermal expansion compensation allows fast heating up and temperature changes during production due to movable frame system Lifetime heating platen concept with separate protection plates Technical features Double-hinge infeed system for best de-aeration and fast simultaneous pressure and temperature buildup Multipot cylinders for optimized edgewise de-aeration (standard for MDF) and pressure relief in case of emergency (option) Motor-driven adjustment of rolling rods for optimized steel belt tracking Thermo-active protection platen in infeed and high pressure zone accelerates heat transfer to the mat (option) Speed range up to 2,500 mm/s Finished board width 1.2 m, 1.8 m, 2.1 m, 2.4 m, 2.7 m, 3.2m (4 ft, 6 ft, 7 ft, 8 ft, 9 ft, 10ft) Parallel Press Gap System CPS+ thickness control with flexible setup for all board requirements Release Agent Applicator to prevent the mat from sticking to the belts (option) Docking of upgrades (e.g. preheating systems) prepared Board thickness 1,5 – 60 mm Typical width variation 0.6 m (2 ft)
