Hydraulic press
formingcompressioncontinuous

hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, compression
Other characteristics
continuous
Force

200,000 kN

Description

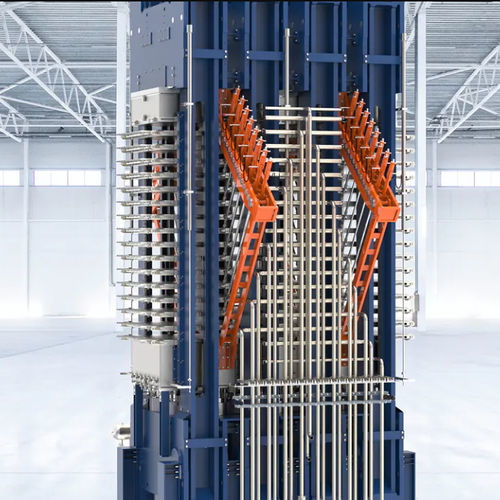

Multi-opening press system to produce OSB with precision pressure and temperature control for large formats. Application OSB production Customer benefits High compression speeds result in sound board properties High position accuracy due to advanced hydraulics and state-of-the-art controls Easy access to every press part and hydraulic system Steam venting enables degassing of wider presses and results in desirable board properties Easy and multifunctional control of the press Technical features Simultaneous closing device with maintenance-free bushing design Press design can be conventional or modular Design capacity up to 1,152 MMsft/a (on basis 3/8-inch board thickness) Finished board width max. 4 m (13 ft), length max. 8 m (26 ft) Rigid design of the press, especially the press frames and the forged cylinders Total nominal pressure up to 200,000 kN Board thickness 10 – 50 mm (0.4 – 2 inches) Option Flexoline consisting of belt and chain conveyors transporting Flexoplan sieves from discharge cage at press outlet back to charge cage in front of the press. Ideal in use with Combiline, which trans-forms continuous forming into discontinuous mat preparation without raw material loss.
