RabbitCore® CPU module / embedded
RabbitCore® RCM3700 Series

Add to MyDirectIndustry favorites
Compare this product
RabbitCore® CPU module / embedded RabbitCore® CPU module / embedded - RabbitCore® RCM3700 Series


  • Processor:


  • Other characteristics:

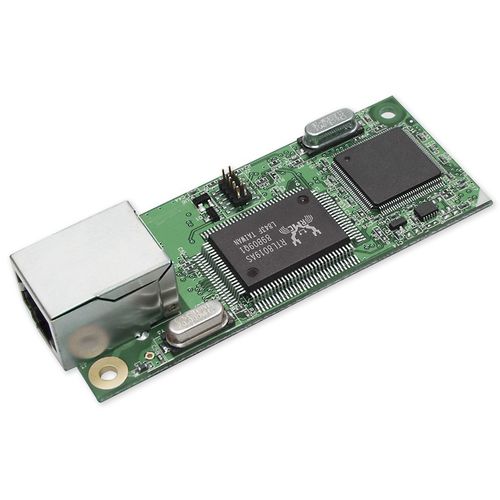

The RabbitCore RCM3700 series extends beyond standard serial to Ethernet devices by providing up to six serial ports along with a rich embedded I/O control feature set such as PWM and Quadrature Decoder Inputs. Additionally, the modules include a backup battery for protected data storage and for the real-time clock.

The software environment for the RCM3700 series offers an excellent platform for developing applications with web server capabilities, especially for remote monitoring and control. With a 1 MB on-board serial Flash, the RCM3700 series can store additional web pages or be used as a datalogger. The RCM3700 easily mounts onto a user-designed motherboard, making it ideal for new and existing applications. With an integrated hardware and software solution, the RCM3700 series ensures your product gets to market faster with lower development costs.

The RCM3700 RabbitCore is the lowest priced Rabbit® 3000 microprocessor based core module designed for Ethernet/Internet applications. The RCM3700 features 512K Flash / 512K SRAM or 256K Flash / 128K SRAM, 4 serial ports, and an extremely small footprint (2.95" × 1.20" / 75 × 30 mm). The RCM3710 is the least expensive of the Ethernet/Internet enabled Rabbit 3000 microprocessor based RabbitCores starting at $47, qty. 100. The development kit price is $299. Extensive demo programs and software application templates make it easy to get the RCM3700 up and running in record time.
