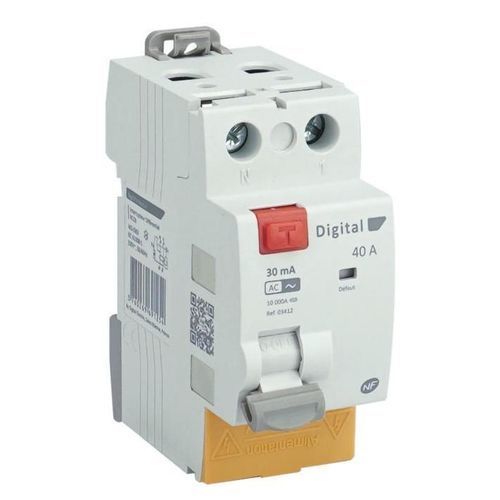

Differential residual current circuit breaker 03414

ACsingle-pole

Overview
The residual current circuit breaker provides protection of persons against direct contact by detecting earth leakage currents. Selection and placement of residual protection in residential, commercial and industrial installations follow applicable standards (e.g. NFC15-100). This device is available in several rated currents and sensitivity options and in different types for specific applications.

Product reference
REF. 03414

Main features

• Function : Residual current protection
• Operating voltage (Ue) : 240 Vac
• Number of poles : 1P+N
• Rated current : 63 A
• Type : AC
• Residual sensitivity : 30 mA
• Standard : EN 61008-1
• Weight : 0.400 kg

Documents available
Datasheet and catalogue (technical documents associated with the product available on the product page).

Technical specifications

• Protection of persons against direct contact
• Compliant with EN 61008-1
• Available rated currents: 16 A to 100 A
• Available sensitivities: 30 mA and 300 mA
• Available types: AC, A, F, B
• Operating voltage: 240 Vac
• Number of poles: 1P+N
• Weight: 0.400 kg
• Variant reference presented: 03414
