Ball valve
manualadjustmentsampling

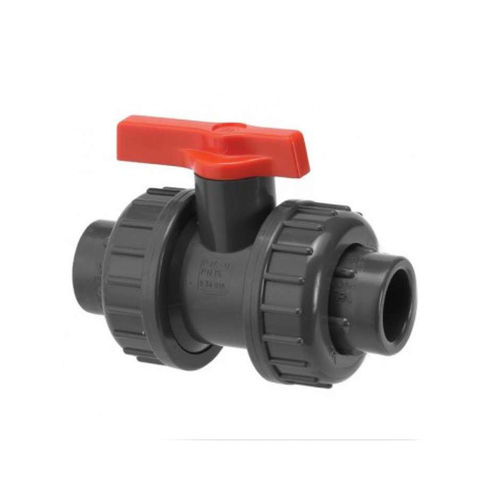

Ball valve - DIVATEC,SL - manual / adjustment / sampling
Ball valve - DIVATEC,SL - manual / adjustment / sampling
Ball valve - DIVATEC,SL - manual / adjustment / sampling - image - 2
Add to favorites
Compare this product
Go to the DIVATEC,SL website for more information

Characteristics

Type
ball
Operation
manual
Function
adjustment, sampling, shut-off, drain, dosing, flow-control
Media
for water, for chemical products, for liquid food products and beverages
Body
female-female, female, male-female, 2-piece, miniature, waterproof, rugged
Applications
for process applications, for industrial applications, for the chemical industry, industrial, for food applications, for liquids, for the pharmaceutical industry, hose, for water treatment, for tanks, laboratory
Material
EPDM, PVC-U
Number of channels
2-channel
Fluid specification
for corrosive fluids, for aggressive media
Associated function
unloading, sewage, filling, mixer
Other characteristics
ISO, standard, DIN, compact, with seal, bidirectional, corrosion-resistant, waterproof
DN

8 mm, 10 mm
(0.315 in, 0.394 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Description

• Available in PVC-U, EPDM seal or FPM • Connections or female BSP 1/4 and 3/8 connections Advantage • Maximum safety with body and ball injected in one piece – cleanliness of ball and ball joint is not possible Use To cut pipe systems Fluids Neutral media free of solids and aggressive liquid or gaseous media if the valve components that contact the media are resistant to the service temperature according to the Divatec resistance list.
