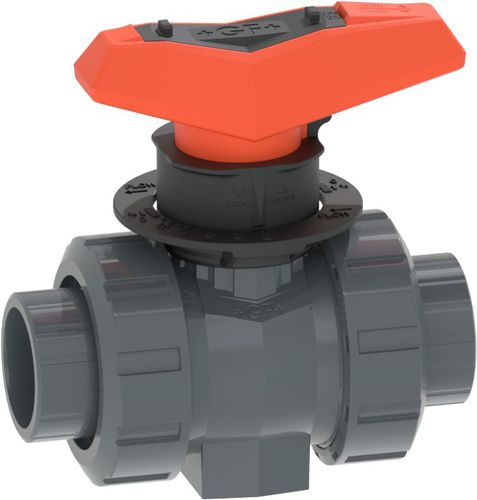

Ball bearing valve 546 pneumaticelectricstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- ball bearing
- Operation
- pneumatic, electric
- Material
- stainless steel, PTFE
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
10 bar
(145 psi)- Temperature
90 °C
(194 °F)- Flow rate
90 l/min, 166 l/min, 235 l/min, 417 l/min, 626 l/min
(23.78 us gal/min, 43.85 us gal/min, 62.08 us gal/min, 110.16 us gal/min, 165.37 us gal/min)
Description
This linear ball valve offers easy control even in complex processes thanks to its linear flow characteristics. Their areas of application are unlimited, even for minimum flow rates.
Features of the 546 linear ball valve
Excellent control characteristics
Designed for easy installation and removal
Integrated stainless steel mounting inserts
Individual valve configuration options
Pneumatic or electric GF actuators (optional)
Other materials on request
Other ball valves
Other ball valves are available in our catalogue. Contact us to find out all the valves we can offer you.
