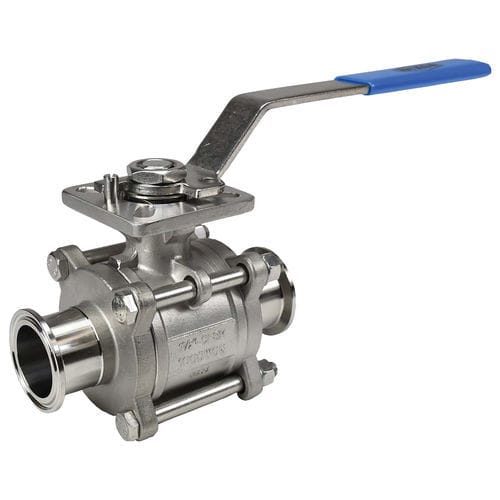

Ball valve BV2-Series

manualflow controlisolation

Application : Used in sanitary processes when you need a valve for isolation or control of the flow of a product. The 3-piece design allows for seat and/or ball replacement without removing the valve from the process line. They are found in the food processing, beverage, winery, brewery, pet product, and industrial markets. Features : Live-loaded stem packing Precision stainless steel balls reduce torque and friction losses while extending seat life Integral ISO 5211 mounting pad Lockable handle can prevent accidental actuation Standard internal entry blow-out proof stem design Full port design matches ball and seat ports to tube I.D. for lower pressure drop and less turbulent flow Compact design for areas with tight space restrictions Fully encapsulated construction produces bubble tight seal Identification tagging available Balanced encapsulated construction minimizes cold flow V-port encapsulated Specifications : Standard connections: clamp (other options available, see part number key) Valve data: Maximum pressure : 1/2" - 2": 1000 PSI WOG 2-1/2" - 4": 800 PSI WOG Operating temperature: -20°F to 450°F (-29°C to 232°C) Dimensions : Available in sizes 1/2" to 4"
