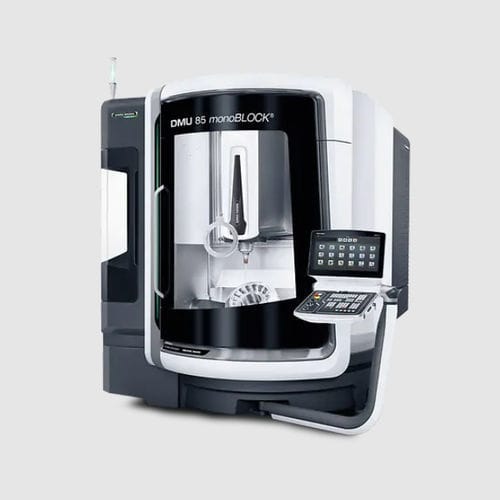

5-axis CNC milling center DMU 85 monoBLOCK

verticalwith rotary tablecompact

Ergonomic Large door opening of 1,500 and unique access to the working area, most compact machine with a footprint of just 12 m² Unrestricted crane loading of up to 1,500 kg Quick and easy to set up thanks to it´s three-point support Precise Comprehensive cooling measures, high-performance coolant unit and multi-sensor compensation as standard From 5 µm positioning accuracy in standard Stiff construction with high static masses and balanced moving parts Versatile Several table solutions from the 5 axes machining with up to 1,500 kg or complete machining with milling and turning with up to 2,050 Nm Widest spindle range on the market with up to 30,000 rpm or with up to 430 Nm Machineintegrated tool magazines with up to 180 pockets Stiff monoBLOCK concept monoBLOCK – Maximum stability from one casting One-piece column with large, stable slideways, 55 mm roller guideways in all axes Maximum stability thanks to large ball screws in all axes ø 50 / 50 / 50 FEM optimisation of all components Clamping of the swivelling rotary table
