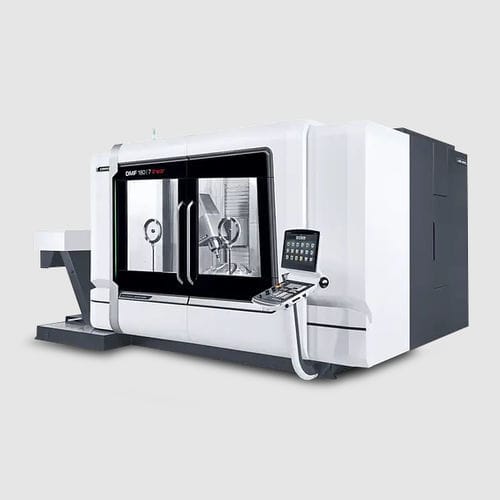

3-axis CNC milling center DMF 180 linear5-axisuniversalcolumn type
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis
- Spindle orientation
- universal
- Structure
- column type
- Number of tool stations
- 30 tools, 60 tools, 120 tools
- Other characteristics
- precision, high-productivity
- X travel
1,800 mm
(71 in)- Y travel
700 mm
(28 in)- Z travel
700 mm
(28 in)- Rotational speed
Min.: 8,000 rpm
(50,265 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)- Workpiece max height
715 mm
(28 in)- Table load capacity
1,500 kg
(3,307 lb)
Description
Productivity
Economic pendulum machining with separating wall
Tool magazine with 30 pockets, 60 or 120 pockets are optinally available
High dynamics up to 80 m/min
Flexibility
3-axes or 5-axes machining with B-axis and integrated NC table
Spindle Versions from 8,000 rpm to 20,000 rpm and 200 Nm
Machining of long heavy workpieces up to 1,500 kg or multiple clamping
Spindles
Basic spindle with 8.000 rpm
speedMASTER spindles with 15,000 or 20,000 rpm (option)
Precision
The Machine bed made of mineral casting is the basis for highest precision
Highest long term precision and tigidity through thermosymmetric travelling column
Basic machine with direct path measuring systems
