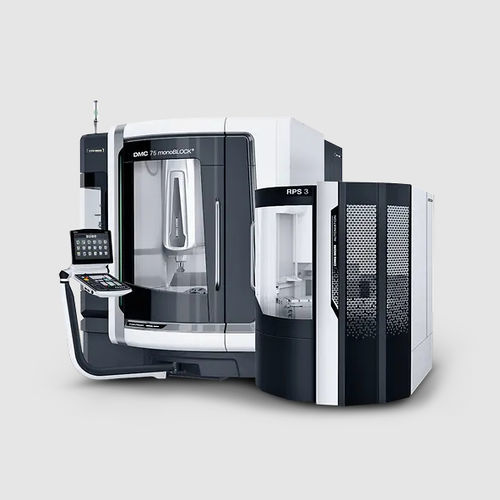

5-axis CNC milling center DMC 75 monoBLOCK

vertical60 toolsprecision

Ergonomic Unrestricted accessibility from the front to the working area Crane loading from above up to the centre of the table Footprint of just 17 m² including chip conveyor and coolant system Precise Comprehensive cooling measures, high-performance coolant unit and multi-sensor compensation as standard From 5 µm positioning accuracy in standard Stiff construction with high static masses and balanced moving parts Versatile Full package including swivelling rotary table and chip conveyor 5 axes simultaneous machining in top configuration at the best price with 60 magazine pockets and MPC (Machine Protection Control). 600 kg maximum load, with crane loading into working area up to 1,000 kg and workpieces up to ø 630 mm Stiff monoBLOCK concept monoBLOCK – Maximum stability from one casting One-piece column with large, stable slideways, 45 mm roller guideways in all axes Maximum stability thanks to large ball screws in all axes ø 40 / 50 / 40 FEM optimisation of all components Clamping of the swivelling rotary table
