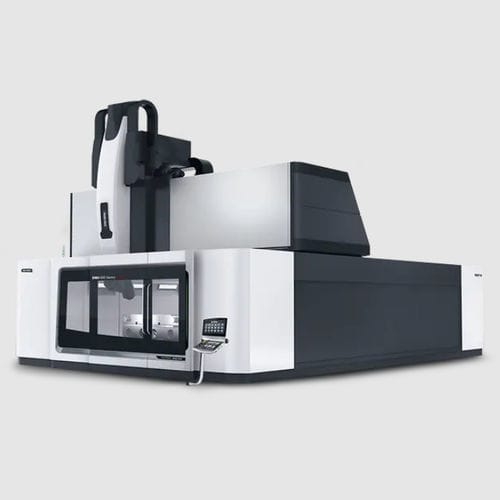

5-axis CNC milling center DMU 600 linearverticalgantryprecision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Other characteristics
- precision, high-rigidity, direct-drive, with linear motor
- X travel
18,000 mm
(709 in)- Y travel
4,500 mm
(177 in)- Z travel
2,000 mm
(79 in)- Workpiece max height
2,500 mm
(98 in)- Table load capacity
150,000 kg
(330,693 lb)
Description
Precision
Direct Drive technology in all axes for superior surface quality and highest dynamic (linear drives: X, Y, Z axes; torque drives: A, C rotary axes)
Large closed-loop control spectrum and free from gear meshing frequencies
Fewer contouring errors compared to rack and pinion drive technology
Performance
Ram in the Z axis with strokes up to 2,000 mm
Y axis crossbeam with 3,500 mm and optional 4,500 mm traverse
The X axis, 6,000 mm as standard, can be freely extended
Efficiency
Optimised Thermoshield technologies
Long-term accuracy with the contact-free drive.
5-year warranty on linear motors
Maximum rigidity
Unique precision with linear motors.
For static and dynamic stiffness optimised machine structure.
Geometric stability with structural cooling.
Maximum stiffnes with FEM-optimised machine structure
Crossbeam, X axis beds, Ram, Y / Z slidefrom EN-GJS-600-3 (GGG60)
