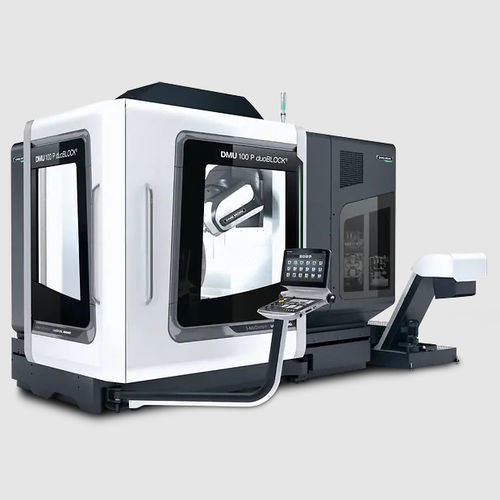

5-axis CNC milling center DMU 100 P (FD) duoBLOCK
verticalcuttingcompact

5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 2
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 3
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 4
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 5
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 6
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 7
5-axis CNC milling center - DMU 100 P (FD) duoBLOCK - DMG MORI - vertical / cutting / compact - image - 8
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Associated functions
cutting
Other characteristics
compact, precision, high-performance, high-power
X travel

1,000 mm
(39.37 in)

Y travel

1,250 mm
(49.21 in)

Z travel

1,000 mm
(39.37 in)

Power

52 kW, 77 kW
(70.7 hp, 104.69 hp)

Workpiece max height

1,600 mm
(63 in)

Table load capacity

2,200 kg
(4,850 lb)

Description

Maximum accuracy through completely water-cooled feed drive SGS: Spindle Growth Sensor for Compensation of spindle increase Significantly improved temperature response Efficiency Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility High machine availability with 96 %

VIDEO
