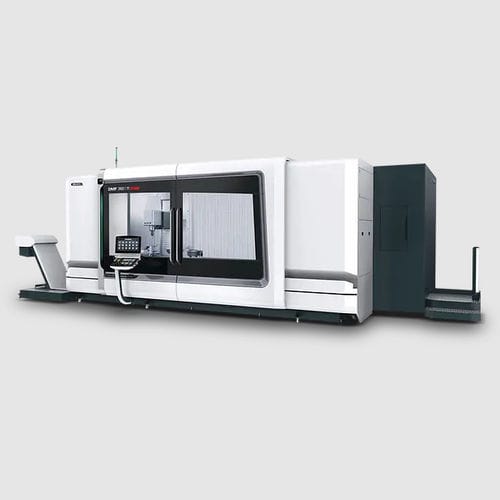

3-axis CNC milling center DMF 360 linear5-axisverticalcolumn type
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis
- Spindle orientation
- vertical
- Structure
- column type
- Spindle mount
- SK50, HSK-A 100
- Number of tool stations
- 30 tools, 60 tools, 120 tools
- Applications
- heavy-duty
- Other characteristics
- high-precision, high-productivity
- X travel
3,600 mm
(142 in)- Y travel
1,100 mm
(43 in)- Z travel
900 mm
(35 in)- Rotational speed
Max.: 20,000 rpm
(125,664 rad.min-1)Min.: 5,000 rpm
(31,416 rad.min-1)- Workpiece max height
930 mm
(37 in)- Work feed X-axis
80,000 mm/min
(52 in/s)- Work feed Y-axis
80,000 mm/min
(52 in/s)- Work feed Z-axis
80,000 mm/min
(52 in/s)- Table load capacity
5,000 kg
(11,023 lb)
Description
Productivity
Economic pendulum machining with separating wall
Tool magazine with 30 pockets, 60 or 120 pockets are optinally available
High dynamics up to 80 m/min
Flexibility
3-axes or 5-axes machining with B-axis and integrated NC table
Spindle Versions from 8,000 rpm to 20,000 rpm and 200 Nm
Machining of long heavy workpieces up to 5,000 kg or multiple clamping
Spindles
Basic spindle with 8,000 rpm
speedMASTER spindles with 15,000 or 20,000 rpm (option)
SK50 / HSK-A100 Spindles with 10,000 rpm and up to 413 Nm (option)
Precision
The Machine bed made of mineral casting is the basis for highest precision
Highest long term precision and tigidity through thermosymmetric travelling column
Basic machine with direct path measuring systems
