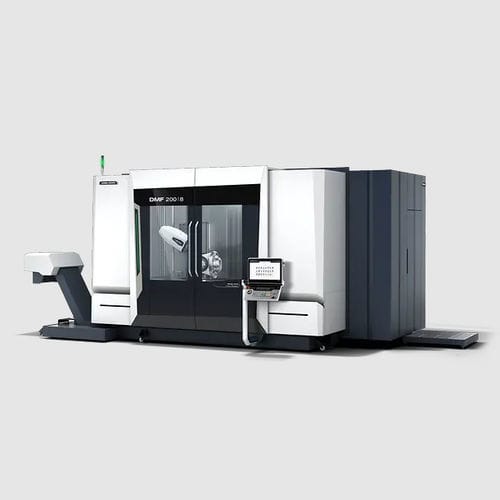

CNC milling-turning center DMF 200|8​​​​​​​ linear

universal5-axisspindle

Maximum Flexibility Comprehensive modular construction kit enables the right solution for your request 4-axes or 5-axes machining with B-axis and integrated NC table Mill-Turn Technology for machining of highly complex geometrics on one machine (optional) Constant rigidity enables a high chip volume and a maximum productivity New basic construction with constant overhang in the whole working area 3 linear guide ways in X-axis and single piece machine bed made of cast iron Spindles from 15,000 to 20,000 rpm and up to 200 Nm High accuracy and best surface quality of the machined workpieces Very high thermal longterm accuracy based on comprehensive cooling measures Direct drives in Y- and Z-axis Dynamic package with linear drive in X-axis (optional) Maximum productivity for your shopfloor Unique tool change ouside of the working area Tool magazine with up to 120 pockets and a tool length of up to 400 mm Use of the whole machine table, without any limitation Avoidance of idle times based on the optional partition wall (optional) Increase of productivity based on DMG MORI Technology Cycles, e.g. angularTOOL
