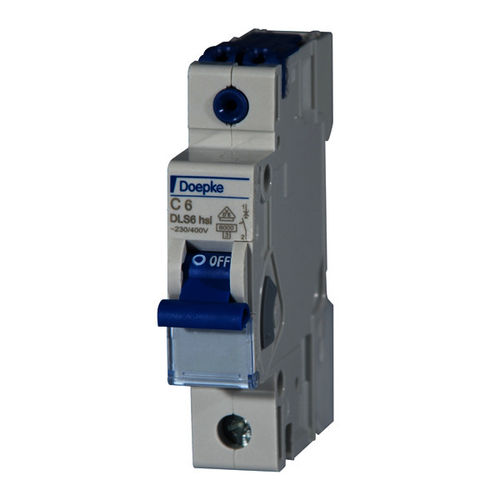

Thermal-magnetic circuit breaker 13 A | DLS 6hsl C13-1
short-circuitmodularminiature

thermal-magnetic circuit breaker
thermal-magnetic circuit breaker
Add to favorites
Compare this product


Characteristics

Type
thermal-magnetic
Electrical characteristics
short-circuit
Operating mode
modular
Other characteristics
miniature
Primary current

13 A

VAC

Max.: 230 V

Min.: 12 V

VDC

Max.: 60 V

Min.: 12 V

Description

An important stipulation of DIN VDE 0100 is to protect cables, lines and installation devices from overload and short-circuits. This requirement can be met using miniature circuit-breakers (MCBs). In industrial installations and also in commercial buildings, they often take on additional protection of equipment and devices where there are usually higher requirements than when used in residential buildings. Miniature circuit-breakers utilise both the magnetic and heat effect of the electrical current. If the current jumps to a value that is too high when a short-circuit occurs, the MCB interrupts the circuit using the magnetic field of an energised coil. The heat that develops when there is continuous overload causes the bimetal to warp, which trips the breaker. The miniature circuit-breaker series DLS 6 has a wide selection of different types for a number of application areas. In addition to switches for residential and purpose-built buildings, it also contains switches for industrial applications. The compact design provides lots of space for the wiring and the large clamping area, as well as the option of using conventional wiring rails for easy processing. The series also has a large, folding label window and a clearly labelled display for the operating status. A number of additional devices, such as undervoltage or operating current trips and auxiliary and fault indicator switches, make universal use of the miniature circuit-breakers possible.
