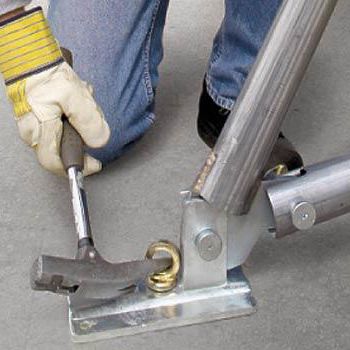

Formwork beam clamp

Overview
Adjustable formwork clamp 10-90 cm, designed for strip foundations, lowered beams and garden walls. Optimized weight-to-static-strength ratio for efficient handling on site; maximum pour height up to 60 cm.

Fast assembly and striking

• Lightweight and easy handling for quick positioning and removal
• Lockable arm spacing and non-loss tightening bar for rapid, secure fixation

Dimensional accuracy during pouring

• Low-deformation robust profiles ensure dimensional stability and alignment during concreting
• Suitable for widths 10-90 cm and pour heights up to 60 cm

Time and material savings

• Galvanized surface for durability and multiple reuses
• Maximum clamp spacing up to 130 cm reduces the number of units required
• Non-loss wedges and easy cleaning after concrete contact
• Continuous fine adjustment via a two-wedge vibration-resistant system

Applications

• Reliable use with both frame and panel formwork systems
• Typical applications: strip foundations, lowered beams, garden walls

Characteristics / technical specifications

• Brand: Doka
• Working width: 10-90 cm
• Maximum pour height: up to 60 cm
• Maximum distance between clamps: up to 130 cm
• Surface: galvanized
• Adjustment: continuous two-wedge fine adjustment, vibration-resistant
• Non-loss wedges and tightening bar
• Use: positioning, aligning and fixing formwork elements
