Radio control RE 6900

with buttonsindustrialLCD display

Product description

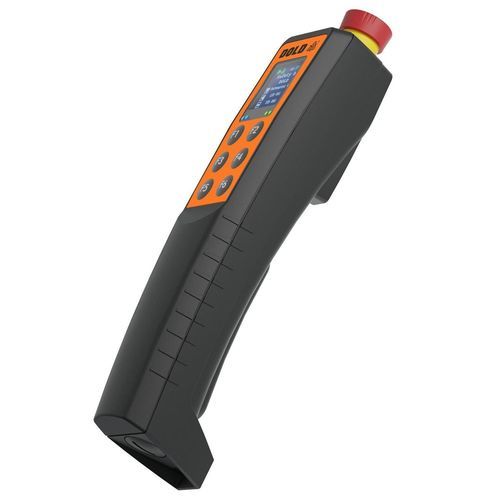

The RE 6900 wireless safety handheld transmitter from the SAFEMASTER W series is designed for safe, reliable operation in hazardous areas during machine setup and maintenance. Its ergonomic form allows intuitive one-handed control for emergency stop and enabling functions, providing safety up to Category 4 / Performance Level e (PL e) or SIL 3.

Configuration options

• Channels: 12, 64 (factory setting: 64)
• Frequency band: 433 - 434 MHz, 869 MHz
• Approvals/markings: -
• Available variants: wireless emergency stop (with/without display), wireless enabling switch (with/without display)

Downloads
Flyer (PDF) and EPLAN macro (ZIP) available.

Technical specifications
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
SIL acc. to IEC/EN 61508: 3
SIL acc. to IEC/EN 61511: 3
Frequency band: 433 - 434, 869 MHz
Type: RE 6900

Features / Technical specifications

• Ergonomic design for comfortable one-handed operation
• Safety levels: Category 4 / Performance Level e (PL e) / SIL 3
• Available channel counts: 12 or 64
• Available frequency bands: 433–434 MHz and 869 MHz
• Variants: emergency stop and enabling switch, each with or without display
• Type designation: RE 6900
• Article number (order number): 0069495
