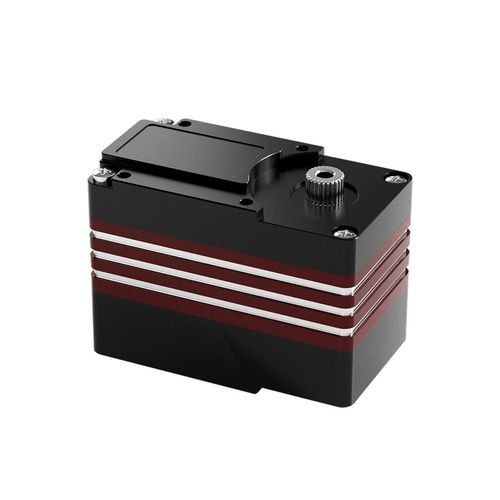

Brushed servomotor DS3522MG2012 Valuminiumhigh-torque
Add to favorites
Compare this product
Characteristics
- Type
- brushed
- Voltage
- 12 V
- Configuration
- aluminium
- Other characteristics
- high-torque, servo-driven
- Intensity
Min.: 0.01 A
Max.: 2.5 A
- Torque
Min.: 3.089095 Nm
(2.2784 ft.lb)Max.: 3.77556 Nm
(2.78471 ft.lb)- Rotational speed
Min.: 47.3684 rpm
(297.6244 rad.min-1)Max.: 57.8947 rpm
(363.7631 rad.min-1)
Description
Product Overview
DS3522MG20 (B-A35) is a high-torque digital servo for demanding motion applications. It delivers 35 kgf·cm stall torque at 12V and features a brushed motor, metal gear train, ball bearings and an A6061 aluminum alloy case sized 42×33×74 mm.
Key Features
Technical Parameters (summary)
Additional Info
DS3522MG20 (B-A35) is a high-torque digital servo for demanding motion applications. It delivers 35 kgf·cm stall torque at 12V and features a brushed motor, metal gear train, ball bearings and an A6061 aluminum alloy case sized 42×33×74 mm.
Key Features
- 35 kgf·cm stall torque
- 12V operating voltage
- Brushed motor with metal gears
- Ball bearing supports
- A6061 aluminum alloy case
Technical Parameters (summary)
- Model: DS3522MG20 / B-A35
- Operating Voltage: 12V
- No-load Speed (±10%): 0.19 sec / 60°
- Stall Torque (±10%): 35 kgf·cm
- Stall Current (at locked) (±10%): ≤2.5 A
- Idle Current (at stopped): 10 mA
- Size: 42 × 33 × 74 mm
- Case Material: A6061 aluminum alloy
- Gear Material: Metal
- Bearing Type: Ball bearings
- Motor Type: Brushed motor
Additional Info
- SKU: B-A35
- Category: Digital Servo
