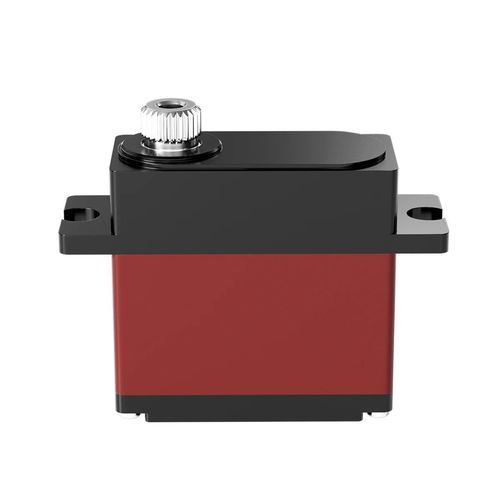

Brushed servomotor A1203MG1701

6 V7.4 Valuminium

Product overview
R-A12 is a compact digital servo motor with a brushed coreless motor, full-metal gear train and up to 12 kgf·cm stall torque. Available for 6V and 7.4V operation, it features ≤ ±1° centering error and compact dimensions suited for robotic joints, RC models and automation equipment.

Key features

• Up to 12 kgf·cm stall torque
• 6V / 7.4V operating voltage
• All-metal gear train
• Brushed coreless motor
• Aluminum-alloy housing
• Compact dimensions and low weight

Parameters (table)
R-A12
Operating Voltage | 6V | 7.4V
No-load Speed (±10%) | 0.12 sec/60° | 0.15 sec/60°
Stall Torque (±10%) | 10 kgf·cm | 12 kgf·cm
Centering Error | ≤ ±1°
Motor Type | Brushed coreless motor
Gear Material | Full metal
Housing Material | Aluminum alloy
Dimensions | 38.25 × 12.6 × 31.4 mm
Weight | 28 g (±10%)

Applications

• Robotic joints (humanoid, dexterous hands)
• RC applications
• Automation equipment and smart devices

Technical specifications

• Model / Series: R-A12 (A1203MG1701)
• Operating voltage: 6V or 7.4V
• No-load speed: 0.12 sec/60° (6V), 0.15 sec/60° (7.4V)
• Stall torque: 10 kgf·cm (6V) / 12 kgf·cm (7.4V)
• Centering error: ≤ ±1°
• Motor type: Brushed coreless motor
• Gear material: Full metal
• Housing material: Aluminum alloy
• Dimensions: 38.25 × 12.6 × 31.4 mm
• Weight: 28 g (±10%)
• Typical uses: robotic joints, dexterous hands, RC, automation equipment
