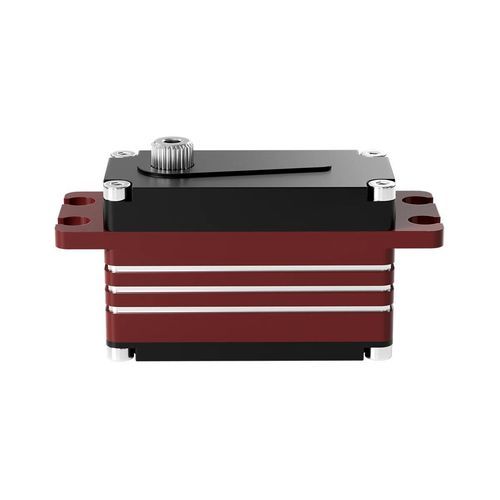

Brushless servomotor A-MG1606A01

6 V7.4 Valuminium

Product overview
R-A16 digital servo motor delivers up to 16.2 kgf·cm stall torque and 0.06 sec/60° response in a compact aluminum alloy housing, designed for precision motion in industrial automation, robotics and actuator assemblies.

Key features

• 16.2 kgf·cm high stall torque (at 8.2V)
• Fast response: 0.06 sec/60° (at 8.2V)
• Brushless coreless motor with full-metal gears for consistent performance

Technical specifications

• Model / Series: R-A16
• Operating Voltage: 6V / 7.4V / 8.2V
• No-load Speed (±10%): 0.08 s/60° (6V) / 0.07 s/60° (7.4V) / 0.06 s/60° (8.2V)
• Stall Torque (±10%): 12.0 kgf·cm (6V) / 15.0 kgf·cm (7.4V) / 16.2 kgf·cm (8.2V)
• Centering Error: ≤ ±1°
• Motor Type: Brushless coreless motor
• Gear Material: Full metal
• Housing Material: Aluminum alloy
• Dimensions: 40.5 × 20.5 × 25.9 mm
• Weight: 58 g (±10%)

Applications & ordering
Intended for integration in precision actuators, robotic joints, servo-driven valves and industrial automation equipment. Verify controller PWM compatibility and mounting envelope during system design.

• SKU: R-A16
• Category: Digital Servo
