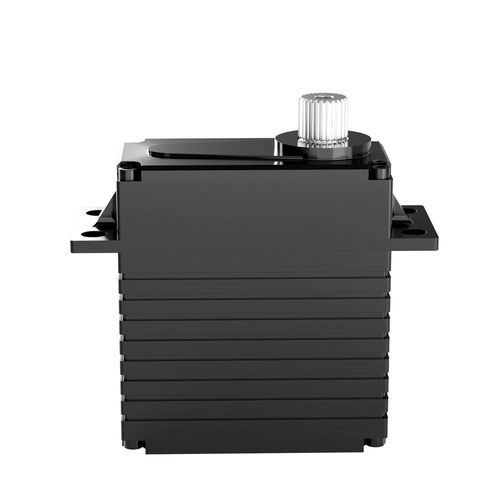

Brushless servomotor A-MG120012A01

24 Valuminiumcoreless

Product overview
Designed for heavy-duty motion control, the A-MG120012A01 (R-A120) digital servo provides 120 kgf·cm stall torque at 24V. It integrates a brushless coreless motor, full-metal gears and an aluminum-alloy housing for compact, high-torque actuation in industrial applications.

Key features

• 120 kgf·cm stall torque (±10%)
• 24V brushless coreless motor
• All-metal gear train
• No-load time: 0.12 sec / 60° (±10%)
• Centering error ≤ ±1°
• Aluminum-alloy housing
• Compact dimensions: 64 × 33 × 74 mm
• Weight: 360 g (±10%)

Technical parameters
Model / Code: A-MG120012A01 (R-A120)
Operating voltage: 24V
No-load speed (±10%): 0.12 sec / 60°
Stall torque (±10%): 120 kgf·cm
Centering error: ≤ ±1°
Motor type: Brushless coreless motor
Gear material: Full metal
Housing material: Aluminum alloy
Dimensions (L × W × H): 64 × 33 × 74 mm
Weight: 360 g (±10%)

Applications & integration

• Industrial robotics and articulated arms
• Automated machinery and handling systems
• Precision actuators, valve and gate drives
• Gimbals and positioning systems requiring high torque in compact form factor
