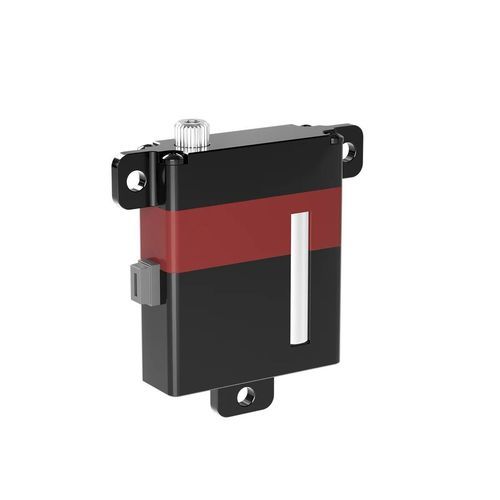

6 V servomotor F1310MG26

8.4 V7.4 Valuminium

Overview
Compact high-torque digital servo designed for responsive motion in robotics, compact automation modules and advanced RC applications. Delivers up to 13.6 kgf·cm torque in a lightweight 26.5 g package, suited for tight-space joints and compact motion-control assemblies.

Key features

• 13.6 kgf·cm torque (at 8.4 V)
• 0.10 s/60° fast response (at 8.4 V)
• 26.5 g lightweight, compact footprint
• Coreless motor for fast transient response
• Full-metal gears and aluminum-alloy housing
• Centering error ≤ ±1°
• Compatible with 6V / 7.4V / 8.4V systems

Parameters / Table
R-B13
Operating Voltage: 6V | 7.4V | 8.4V
No-load Speed (±10%): 0.14 s/60° | 0.12 s/60° | 0.10 s/60°
Stall Torque (±10%): 8 kgf·cm | 11.5 kgf·cm | 13.6 kgf·cm
Centering Error: ≤ ±1°
Motor Type: Coreless Motor
Gear Material: Full Metal
Housing Material: Aluminum Alloy
Dimension: 35 × 10 × 35.5 mm
Weight: 26.5 g (±10%)

Additional product info

• SKU: R-B13
• Category: Digital Servo

Technical specifications

• Model: R-B13 (F1310MG26)
• Operating Voltages: 6V, 7.4V, 8.4V
• No-load Speed (±10%): 0.14 s/60° (6V), 0.12 s/60° (7.4V), 0.10 s/60° (8.4V)
• Stall Torque (±10%): 8 kgf·cm (6V), 11.5 kgf·cm (7.4V), 13.6 kgf·cm (8.4V)
• Centering Error: ≤ ±1°
• Motor Type: Coreless
• Gears: Full metal
• Housing: Aluminum alloy
• Dimensions: 35 × 10 × 35.5 mm
• Weight: 26.5 g (±10%)
