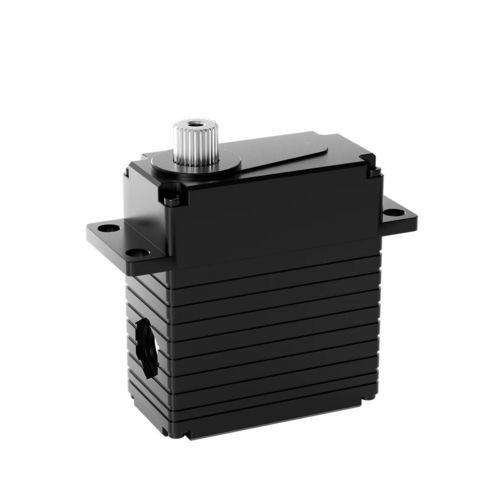

Brushless servomotor A-MG150025A0112 Valuminiumcoreless
Add to favorites
Compare this product
Characteristics
- Type
- brushless
- Voltage
- 12 V
- Configuration
- coreless, aluminium
- Applications
- for industrial applications
- Other characteristics
- high-torque, high-precision, servo-driven
- Torque
Max.: 16.180973 Nm
(11.934473 ft.lb)Min.: 13.238978 Nm
(9.764569 ft.lb)- Rotational speed
Max.: 44 rpm
(276.4602 rad.min-1)Min.: 36 rpm
(226.1947 rad.min-1)
Description
Product Overview
Built for high-load motion systems, the R-A150 digital servo delivers 150 kgf·cm of stall torque at 12V. It combines a brushless coreless motor with full-metal gears and an aluminum housing for precise, repeatable positioning in industrial applications. SKU: A-MG150025A01 / Model: R-A150.
Features
Parameters
R-A150
Operating Voltage: 12V
No-load Speed (±10%): 0.25 sec / 60°
Stall Torque (±10%): 150 kgf·cm
Centering Error: ≤ ±1°
Motor Type: Brushless Coreless Motor
Gear Material: Full Metal
Housing Material: Aluminum Alloy
Dimension: 64 × 33 × 74 mm
Weight: 360 g (±10%)
Technical specifications
Built for high-load motion systems, the R-A150 digital servo delivers 150 kgf·cm of stall torque at 12V. It combines a brushless coreless motor with full-metal gears and an aluminum housing for precise, repeatable positioning in industrial applications. SKU: A-MG150025A01 / Model: R-A150.
Features
- 150 kgf·cm ultra-high stall torque
- 12V brushless coreless motor for efficient response
- Full-metal gear train and aluminum alloy housing for durability
Parameters
R-A150
Operating Voltage: 12V
No-load Speed (±10%): 0.25 sec / 60°
Stall Torque (±10%): 150 kgf·cm
Centering Error: ≤ ±1°
Motor Type: Brushless Coreless Motor
Gear Material: Full Metal
Housing Material: Aluminum Alloy
Dimension: 64 × 33 × 74 mm
Weight: 360 g (±10%)
Technical specifications
- Model: R-A150
- Operating Voltage: 12V
- No-load Speed (±10%): 0.25 sec / 60°
- Stall Torque (±10%): 150 kgf·cm
- Centering Error: ≤ ±1°
- Motor Type: Brushless Coreless Motor
- Gear Material: Full Metal
- Housing Material: Aluminum Alloy
- Dimensions: 64 × 33 × 74 mm
- Weight: 360 g (±10%)
- SKU: A-MG150025A01
- Category: Digital Servo
