DC servomotor A-MG1307M01
brushed6 V4.8 V

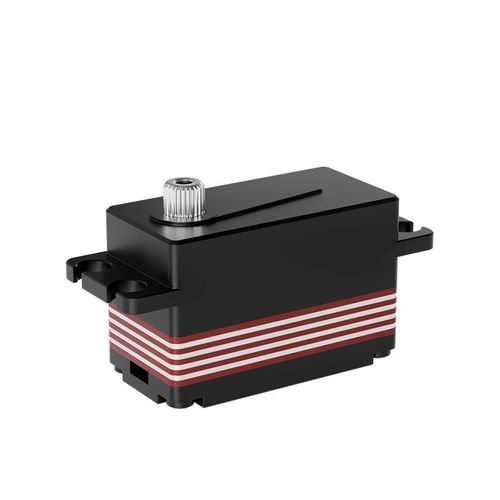

DC servomotor - A-MG1307M01 - Dongguan Abass Precision Drive Technology Co., Ltd. - brushed / 6 V / 4.8 V
DC servomotor - A-MG1307M01 - Dongguan Abass Precision Drive Technology Co., Ltd. - brushed / 6 V / 4.8 V
DC servomotor - A-MG1307M01 - Dongguan Abass Precision Drive Technology Co., Ltd. - brushed / 6 V / 4.8 V - image - 2
DC servomotor - A-MG1307M01 - Dongguan Abass Precision Drive Technology Co., Ltd. - brushed / 6 V / 4.8 V - image - 3
Add to favorites
Compare this product
Go to the Dongguan Abass Precision Drive Technology Co., Ltd. website for more information

Characteristics

Type
DC, brushed
Voltage
6 V, 7.4 V, 4.8 V
Configuration
coreless, aluminium, compact, small-size, lightweight
Applications
for robotics, for drones
Other characteristics
high-torque, high-precision, servo-driven
Power

Min.: 0.02 kW
(0.03 hp)

Max.: 0.02 kW
(0.03 hp)

Torque

Min.: 0.833565 Nm
(0.614806 ft.lb)

Max.: 1.274865 Nm
(0.940292 ft.lb)

Rotational speed

Min.: 100 rpm
(628.3185 rad.min-1)

Max.: 142.857 rpm
(897.597 rad.min-1)

Description

Overview
A-MG1307M01 (R-A13) is a compact digital servo motor with a coreless motor and full-metal gears, providing up to 13 kgf·cm torque and fast response for compact industrial motion control applications.

Key features
  • 13 kgf·cm maximum torque (7.4V)
  • Fast response: 0.07 sec/60° (7.4V)
  • Coreless motor and full-metal gear train
  • Aluminum alloy housing for reduced weight and thermal conduction


Technical specifications
  • SKU: R-A13
  • Model name: A-MG1307M01 / R-A13
  • Operating voltage: 4.8V / 6.0V / 7.4V
  • No-load speed (±10%): 0.10 sec/60° (4.8V) • 0.08 sec/60° (6.0V) • 0.07 sec/60° (7.4V)
  • Stall torque (±10%): 8.5 kgf·cm (4.8V) • 10.7 kgf·cm (6.0V) • 13.0 kgf·cm (7.4V)
  • Centering error: ≤ ±1°
  • Motor type: Coreless motor
  • Gear material: Full metal
  • Housing material: Aluminum alloy
  • Dimensions: 40 × 20 × 26.5 mm
  • Weight: 58 g (±10%)


Applications
  • Compact actuators, robotic joints and grippers
  • UAV control surfaces and stabilization systems
  • Precision positioning in industrial automation and instrumentation


Ordering information
  • Product designation on page: R-A13
  • Reference: A-MG1307M01
  • Contact supplier for lead time and minimum order quantity
