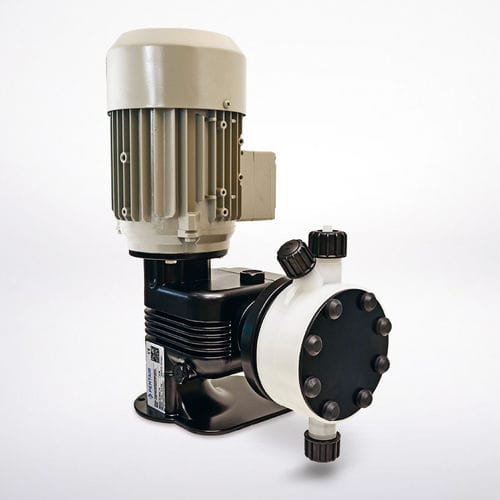

Diaphragm pump PRIUS D
waterwith electric motorindustrial

Diaphragm pump - PRIUS D - Dosim, S.A. de C.V. - water / with electric motor / industrial
Diaphragm pump - PRIUS D - Dosim, S.A. de C.V. - water / with electric motor / industrial
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
water
Operation
with electric motor
Domain
industrial
Applications
metering
Material
PVDF, stainless steel, PP, PTFE
Protection level
chemical-resistant
Other characteristics
spring, ball valve, multiphase
Flow

Max.: 1,000 l/h
(264.17205 us gal/h)

Min.: 12 l/h
(3.17006 us gal/h)

Pressure

5 bar
(72.519 psi)

Power

0.18 kW, 0.37 kW
(0.24 hp, 0.5 hp)

Description

PRIUS D - 50 HZ 3-PHASE MOTOR DRIVEN DOSING PUMP The PRIUS series of motor-driven metering pumps have been entirely projected and engineered by EMEC to meet higher dosage needs. Strength of a considerable dosage joins with a safe chemicals resistance to ensure the maximum reliability. The PRIUS D 50 Hz with 3-PHASE motor has: PTFE diaphragm, aluminium enclosure, spring return mechanism, manual degassing valve (PVDF and PP pump heads), flow regulation, double ball check valve and liquid ends available in different sizes and materials. PVDF, Stainless Steel or PP pump heads available. FEATURES Double ball check valve 3-phase motor PTFE diaphragm Aluminium enclosure Spring return mechanism Manual degassing valve (PVDF and PP pump heads) Manual stroke length adjustment Liquid ends available in different sizes and materials
