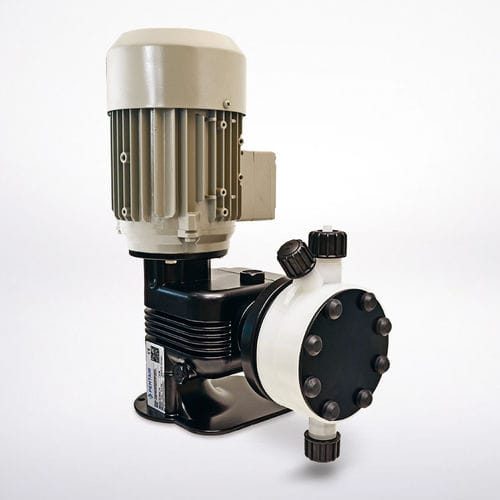

Diaphragm pump PRIUS D - 60 HZ

waterfor chemicalswith electric motor

PRIUS D - 60 HZ 3-PHASE MOTOR DRIVEN DOSING PUMP The PRIUS series of motor-driven metering pumps have been entirely projected and engineered by EMEC to meet higher dosage needs. Strength of a considerable dosage joins with a safe chemicals resistance to ensure the maximum reliability. The PRIUS D 60 Hz with 3-PHASE motor has: PTFE diaphragm, aluminium enclosure, spring return mechanism, manual degassing valve (PVDF and PP pump heads), flow regulation, double ball check valve and liquid ends available in different sizes and materials. PVDF, Stainless Steel or PP pump heads available. FEATURES Double ball check valve 3-phase motor PTFE diaphragm Aluminium enclosure Spring return mechanism Manual degassing valve (PVDF and PP pump heads) Manual stroke length adjustment Liquid ends available in different sizes and materials MOTORS 0,37 kW: 3-PHASE MOTOR 460 V Y 1670 rpm
