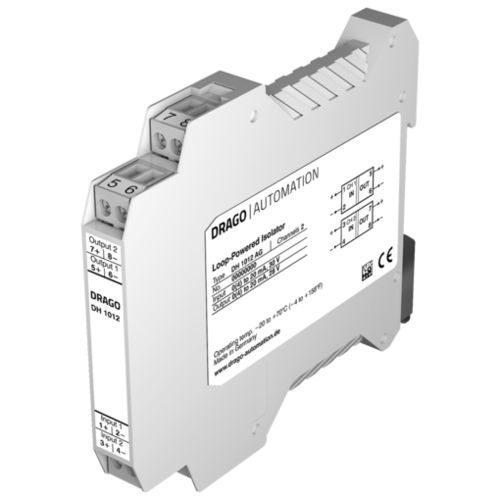

Signal isolator DH 1 series

galvanicvoltageloop-powered

The loop-powered isolator DH 1000 provides galvanic separation for 0(4) to 20mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy. Galvanic isolation across input and output Protection against erroneous measurements due to parasitic voltages or ground loops No power supply required Saving costs since wiring is reduced and line influences are omitted Extremely compact design, 1- and 2-channel versions Only 6.3 mm DIN-rail per channel High accuracy No falsification of measured signal Protective Separation Protects service personnel and downstream devices against impermissibly high voltage Maximum reliability No maintenance costs 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender) In this way, the unit avoids interference voltage carry-over, effectively suppressing interference. The very low drop voltage of 2.0 V, a high level of accuracy and a compact design all work together to make the DH 1000 the first choice in system design. The slim housing with 12.5 mm width for one or two channels saves space in your switch cabinet and facilitates by the practical plug-in screw terminal blocks the assembly. The DH 1022 requires only 6.3 mm DIN-rail space per channel. Intelligent design and their consequential avoidance of highly integrated components result in extremely long service lives and reliability without any falsification of the measurement signal.
