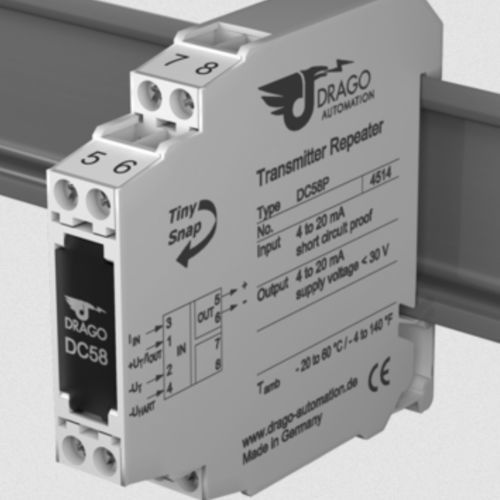

Communication repeater DC 58 P

currentisolated

The Passive Transmitter Repeater DC 58 is used for powering of 2-wire transmitters and isolation of 4 to 20 mA standard signals. Cost optimized design Economical separation for standard applications Only 60 mm installation depth, 11.2 mm wide Can be installed in economical standard terminal boxes Galvanic isolation across input and output Protection against erroneous measurements due to parasitic voltages or ground loops Protective Separation acc. to EN 61140 Protects service personnel and downstream devices against impermissibly high voltage No power supply required Saving costs since wiring is reduced and line influences are omitted 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender) The 24 V power from the control system is transferred to the 2-wire transmitter with low voltage drop. The transmitter loop current is available galvanic isolated on output of the DC58. Additionally the measuring input accepts active 4 to 20 mA signals from 4-wire transmitters. For communication with HART-Transmitters the internal 250 Ohm resistor on terminal 4 can be used. The slim housing with 11.2 mm wide saves significant space on the DIN-rail. To protect both maintenance personnel as well as downstream equipment against impermissibly high voltages, the DC 58 offers Protective Separation in according to EN 61140. The DC 58 requires no additional power supply since the auxiliary power is obtained from the current loop without distorting it. This not only saves costs during installation, but also increases reliability.
