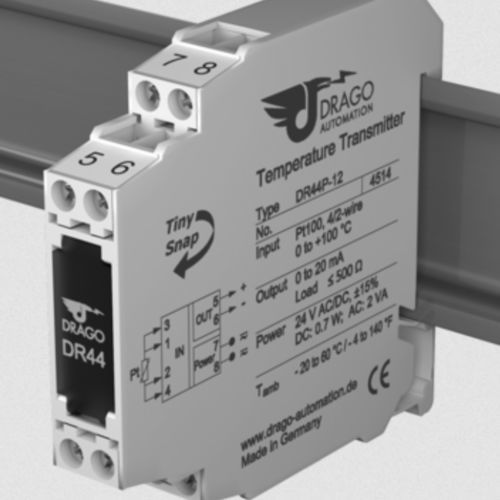

DIN rail mount temperature transmitter DR 44 P

Pt1004-wireanalog

The Temperature Transmitter DR 44 converts the sensor signal on input to temperature linear standard signal and makes it galvanic isolated available on output. Cost optimized design Economical temperature measuring for standard applications with Pt100 sensor with 4-wire connection Only 60 mm installation depth, 11.2 mm wide Can be installed in economical standard terminal boxes Fixed ranges, easy to use Ready to use without any settings or adjustments Zero/Span compensation on front panel for readjustment of sensor signal or measuring equipment True 3-port separation Protection against erroneous measurements due to parasitic voltages or ground loops Protective Separation acc. to EN 61140 Protects service personnel and downstream devices against impermissibly high voltage Unlimited use with 24 V AC/DC power supply Universally applicable for all measurement and industrial applications 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender) For applications where one measuring range only is used, the Temperature Transmitter DR 44 offers a cost-effective alternative. A cross-connector for the auxiliary power supply ensures fast and easy installation. The slim housing with 11.2 mm width saves significant space on the DIN-rail. If required a measuring range compensation can be performed at the Zero/Scan potentiometers behind the front cover. Analog signal processing guarantees precise measured values with short response times and outstanding signal reproduction at the output.
