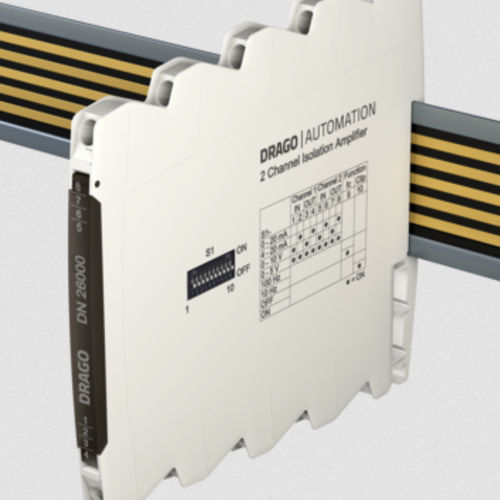

Signal amplifier DN 26000 B

chargemeasuringisolation

The 2-Channel Isolation Amplifier DN 26000 is used for isolation and conversion of 0/4 ... 20 mA and 0 ... 10 V, 0 … 5 V standard signals. Calibrated signal setting via DIP switch Input and output range can be set by using DIP switch – high precision without any further adjustment 5-Port Isolation Protection against erroneous measurements due to parasitic voltages or ground loops Extremely slim design 6.2 mm slim housing for a simple and space saving DIN rail mounting Power supply via In-Rail-connector allows fast and economical installation Protective Separation acc. to EN 61140 Protects service personnel and downstream devices against impermissibly high voltage Maximum reliability No maintenance costs 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender) Due to the extremely slim design, the space requirement is only 3 mm per channel. The input and output ranges can be selected individually for each channel via DIP switches. A readjustment is not necessary due to the calibrated measuring ranges. A signal clipping and the cut-off frequency can also be set via DIP switches. The power is supplied via the In- Rail-Bus, which ensures prewiring on a standard DIN rail. This significantly reduces the wiring effort. A green LED on the front of the unit has been provided to monitor the power supply.
