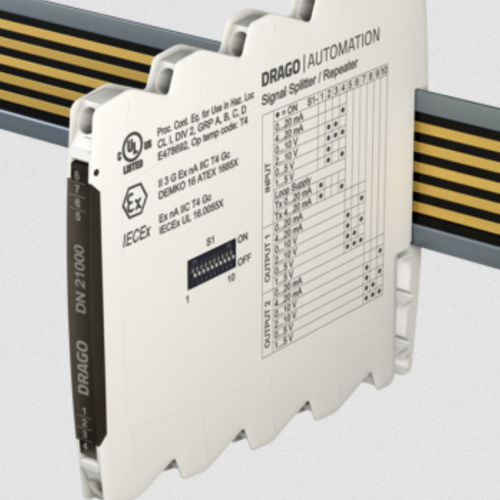

Signal splitter DN 21000 series

powerstandardDIN rail

The Signal Splitter/Repeater DN 21000 is used for isolation, conversion and distribution of 0/4 to 20 mA, 0/1 to 5 V and 0/2 to 10 V standard signals. The measuring input can also supply the loop power for 2-wire transmitters. Universal configurable operating Signal isolator or repeater power supply for 2-wire transmitters, 2 independent outputs Calibrated signal setting Input and output range can be set by using DIP switch – high precision without any further adjustment 4-Port isolation Protection against erroneous measurements due to parasitic voltages or ground loops Extremely slim design 6.2 mm slim housing for a simple and space saving DIN rail mounting Optional In-Rail-Bus mounting rail connector allows for fast and economical installation Protective Separation acc. to EN61140 Protects service personnel and downstream devices against impermissibly high voltage Maximum reliability No maintenance costs 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender) The input and two isolated outputs can be easily configured by using DIP switch. Due to the calibrated range selection no further adjustment is necessary. The auxiliary power can be supplied via the connection terminals or via the optional In- Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.
