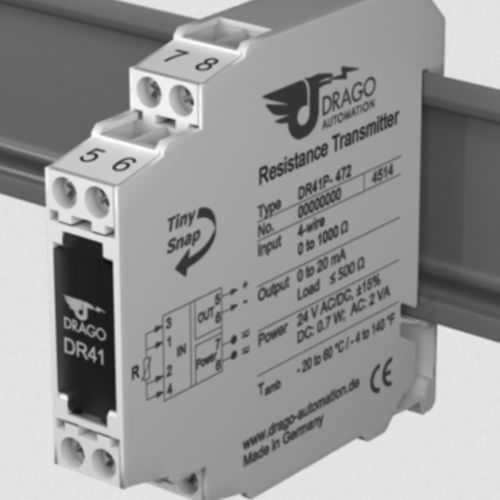

Resistance transmitter DR 41 series

The Resistance Transmitter DR 41 converts the sensor resistance value to a standard signal and makes it galvanic isolated available on output. Cost optimized resistance measuring in 2-, 3- and 4-wire sensor connection Only 60 mm installation depth, 11.2 mm wide Can be installed in economical standard terminal boxes Fixed ranges, easy to use Ready to use without any settings or adjustments Zero/Span compensation on front panel for readjustment of sensor and measuring equipment or line compensation at 2-wire sensor connection True 3-port separation Protection against erroneous measurements due to parasitic voltages or ground loops Protective Separation acc. to EN 61140 Protects service personnel and downstream devices against impermissibly high voltage Unlimited use with 24 V AC/DC power supply Universally applicable for all measurement and industrial applications 5 Years Warranty Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender) For applications where one measuring range only is used, the Resistance Transmitters DR 41 offers a cost-effective alternative. A cross-connector for the auxiliary power supply ensures fast and easy installation. The slim housing with 11.2 mm width saves significant space on the DIN-rail. If required a measuring range compensation can be performed at the Zero/Scan potentiometers behind the front cover. Analog signal processing guarantees precise measured values with short response times and outstanding signal reproduction at the output.
