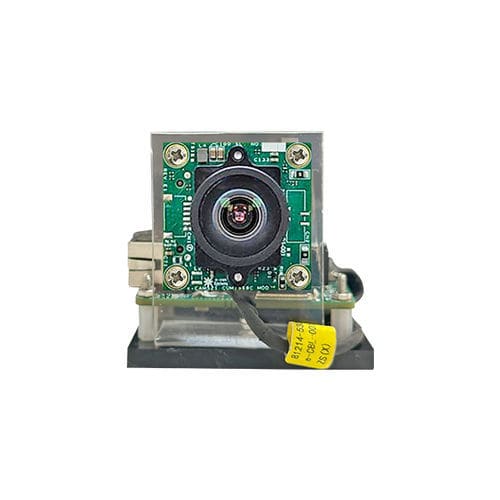

Digital camera e-CAM56_CUHSB

industrialmachine visionfor robotics

e-CAM56_CUHSB is an 5MP 10G Holoscan camera solution engineered for seamless integration with NVIDIA's Jetson AGX Thor and AGX Orin™ platforms. Powered by the Sony® Pregius S IMX568 global shutter sensor, it delivers distortion-free image capture of fast-moving objects and is fully compatible with the NVIDIA Holoscan SDK. This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By intelligently offloading computationally intensive ISP tasks, it achieves ultra-low latency while freeing the NVIDIA GPU and CPU. This hardware acceleration minimizes system latency and allows the host processor to fully focus on complex AI inference and model execution. The 10G Ethernet interface on the HSB board further enables deployment of advanced vision solutions that require the ultra-low latency essential for real-time AI applications. Highlights: Houses e-CAM521_CUMI568C_MOD - 5MP camera based on Sony® Pregius S IMX568 sensor Global Shutter High Sensitivity Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit Uses e-con's Proprietary TintE ISP for image processing Key features: Frame Rate: YUV: YUV: 5MP @ 45fps Bayer: 5MP @ 66fps Output Format: Bayer / YUV 12-bit Standard S-mount lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: 10G HSB Connector: RJ45 Cable Length: 2m
