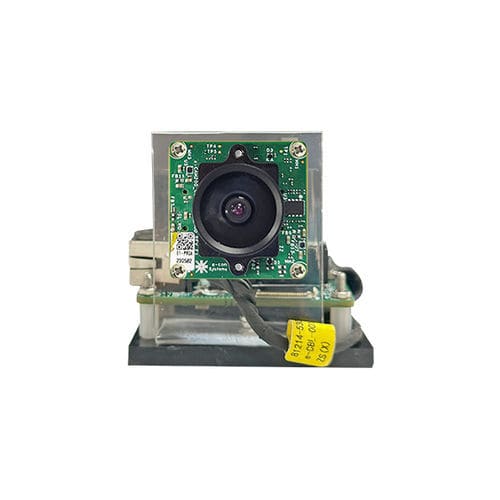

Digital camera e-CAM200_CUHSB

industrialmachine visionfor robotics

e-CAM200_CUHSB is a 20MP super-resolution camera built on the 1/1.8" AR2020 CMOS image sensor from onsemi's Hyperlux LP family. This 5K camera is designed for seamless integration with NVIDIA's powerful Jetson AGX Thor and AGX Orin™ platforms through the 10G HSB interface, enabling advanced vision solutions with the ultra-low latency required for real-time AI applications. With e-con Systems' ISP fine-tuning expertise, the TintE™ ISP has been optimized to deliver superior image quality, making it possible to capture even the finest details from long distances. The camera features a rolling shutter sensor with an optional Global Reset Release (GRR) mode, which helps minimize rolling shutter artifacts in dynamic imaging environments. This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it significantly reduces overall system latency and frees up the NVIDIA GPU and CPU. This hardware acceleration enables the host processor to dedicate its full processing power to complex AI inference and model execution. Highlights: Houses e-CAM200_CUMI2020C_MOD - 20MP Camera Module based on onsemi® AR2020 sensor Lowlight and NIR Excellence GRR - Reduces the rolling shutter artifacts # Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit Uses e-con's Proprietary TintE ISP for image processing Key features: Frame Rate: YUV: 20MP @ 15fps Bayer: 20MP @ 25fps Output Format: Bayer / YUV 10-bit Standard S-mount lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design
