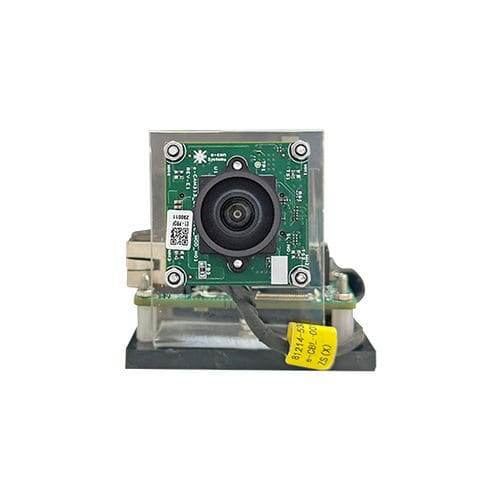

HDR camera e-CAM31_CUHSB

industrialmachine visionfor robotics

e-CAM31_CUHSB is a 3MP camera designed for seamless integration with NVIDIA Jetson AGX Thor and AGX Orin™ platforms. Powered by the Sony® ISX031 image sensor with a fine-tuned ISP, it connects via the 10G HSB interface to deliver advanced vision solutions with the ultra-low latency required for real-time AI applications. With its subpixel technique, the ISX031 sensor achieves impressive HDR performance of up to 120 dB, ensuring sharp, reliable images without motion blur even under challenging outdoor lighting conditions. This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it minimizes system latency while freeing the NVIDIA GPU and CPU. This hardware acceleration enables the host processor to focus entirely on complex AI inference and model execution. Highlights: Houses 3MP Sony® ISX031 sensor incorporating sub-pixel technology High Dynamic Range (HDR) up to 120dB + LFM Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit On-board High Performance ISP Key features: Frame Rate: 3MP @ 72fps Output Format: YUV 16-bit Standard S-mount lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: 10G HSB Connector: RJ45 Cable Length: 2m
