Digital camera e-CAM25_CUHSB

industrialmachine visionfor robotics

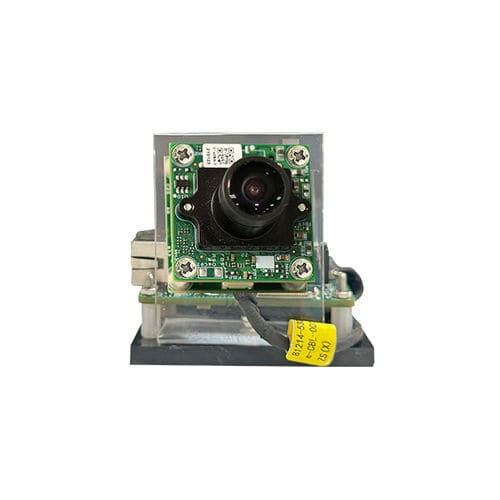

e-CAM25_CUHSB is a Full HD global shutter camera designed for seamless integration with NVIDIA Jetson AGX Thor and AGX Orin™ platforms. Built on the 1/2.6" AR0234CS global shutter sensor and paired with a fine-tuned image signal processor (ISP), this camera connects via the 10G HSB interface to enable advanced vision solutions with the ultra-low latency required for real-time AI applications. With its global shutter technology and support for up to 120 fps, the camera effectively minimizes frame-to-frame distortion and motion artifacts, delivering crisp, distortion-free images of fast-moving targets. This compact solution combines e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By intelligently offloading computationally intensive ISP tasks, it significantly reduces system latency while freeing the NVIDIA GPU and CPU. This hardware acceleration allows the host processor to dedicate its full power to complex AI inference and model execution. Highlights: Houses e-CAM217_CUMI0234_MOD - Full HD Camera Module with S-mount lens holder Global Shutter Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit On-board High Performance ISP Key features: Frame Rate: Full HD @ 120fps Output Format: YUV 16-bit Standard S-mount lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: 10G HSB Connector: RJ45 Cable Length: 2m
