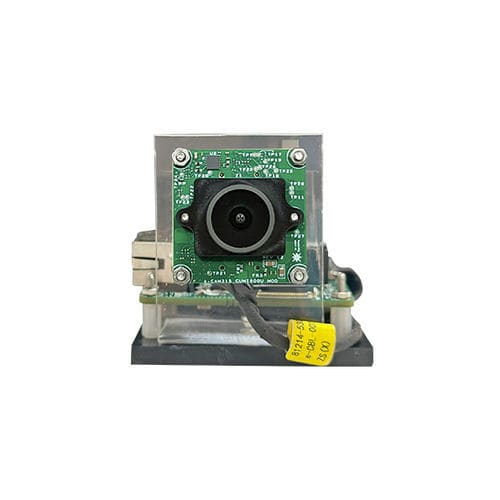

Digital camera e-CAM37_CUHSB

industrialmachine visionfor robotics

e-CAM37_CUHSB is a 3MP global shutter color camera based on the Sony® Pregius S IMX900 CMOS image sensor. Designed for seamless integration with NVIDIA's powerful Jetson AGX Thor and AGX Orin™ platforms, it connects via the 10G HSB interface, enabling advanced vision solutions with the ultra-low latency required for real-time AI applications. With e-con Systems' proven expertise in ISP fine-tuning for NVIDIA platforms, this camera delivers superior image and video quality. Its global shutter technology ensures sharp, distortion-free captures even in fast-moving scenes and challenging lighting conditions. This compact solution combines e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it significantly reduces system latency and frees up the NVIDIA GPU and CPU. This hardware acceleration allows the host processor to dedicate its full power to complex AI inference and model execution. Highlights: Houses e-CAM315_CUMI900_MOD - 3MP Camera Module based on Sony® Pregius S™ IMX900 sensor Global Shutter Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit Uses e-con's Proprietary TintE ISP for image processing Key features: Frame Rate: YUV: 3MP @ 72fps Bayer: 3MP @ 72fps Output Format: Bayer / YUV 12-bit Standard S-mount lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: 10G HSB Connector: RJ45 Cable Length: 2m
