3D camera DepthVista_HSB

time-of-flightindustrialmachine vision

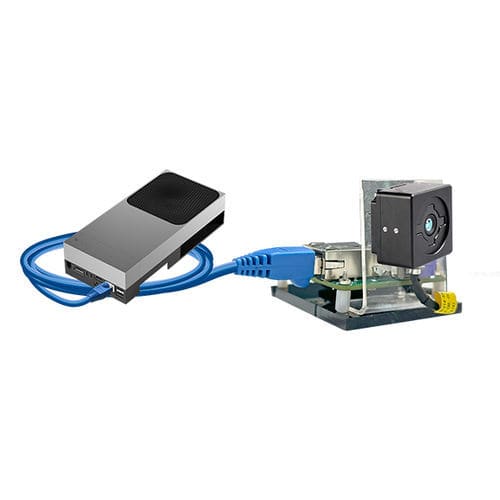

DepthVista_HSB is a 3D Time-of-Flight camera designed for NVIDIA Jetson AGX Thor and AGX Orin™ platforms. The 940nm pulsed laser ensures daylight robustness. It also comes with 850nm VCSEL's for Indoor 3D imaging applications. This 3D ToF depth camera is based on a high-performance CCD depth sensor which provides precise 3D depth measurement. It has both far and near modes of 1m to 6m and 0.2m to 1.2m respectively. This compact solution integrates e-con's 3D ToF camera with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it minimizes system latency while freeing the NVIDIA GPU and CPU. This hardware acceleration enables the host processor to focus entirely on complex AI inference and model execution. Highlights: Streams both 3D depth and IR imaging Suitable for Outdoor/Indoor applications Depth range up to 8.5m (6m by default) Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit Key features: Frame Rate: Frame Rate: Depth VGA + IR VGA @30fps each frame 3D technology: Time of Flight (ToF) Wavelength: 940nm / 850nm Environment: Indoor and Outdoor Depth operating mode/range: Near mode: 0.2m to 1.2m Far mode: 1m to 6m Depth range up to 8.5m (6m by default)** Lightweight, versatile, and portable design
